Allen heath 42 series manual schematics
This is the 10 pages manual for allen heath 42 series manual schematics.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from allen heath 42 series manual schematics (Ocr-read)
Page 1

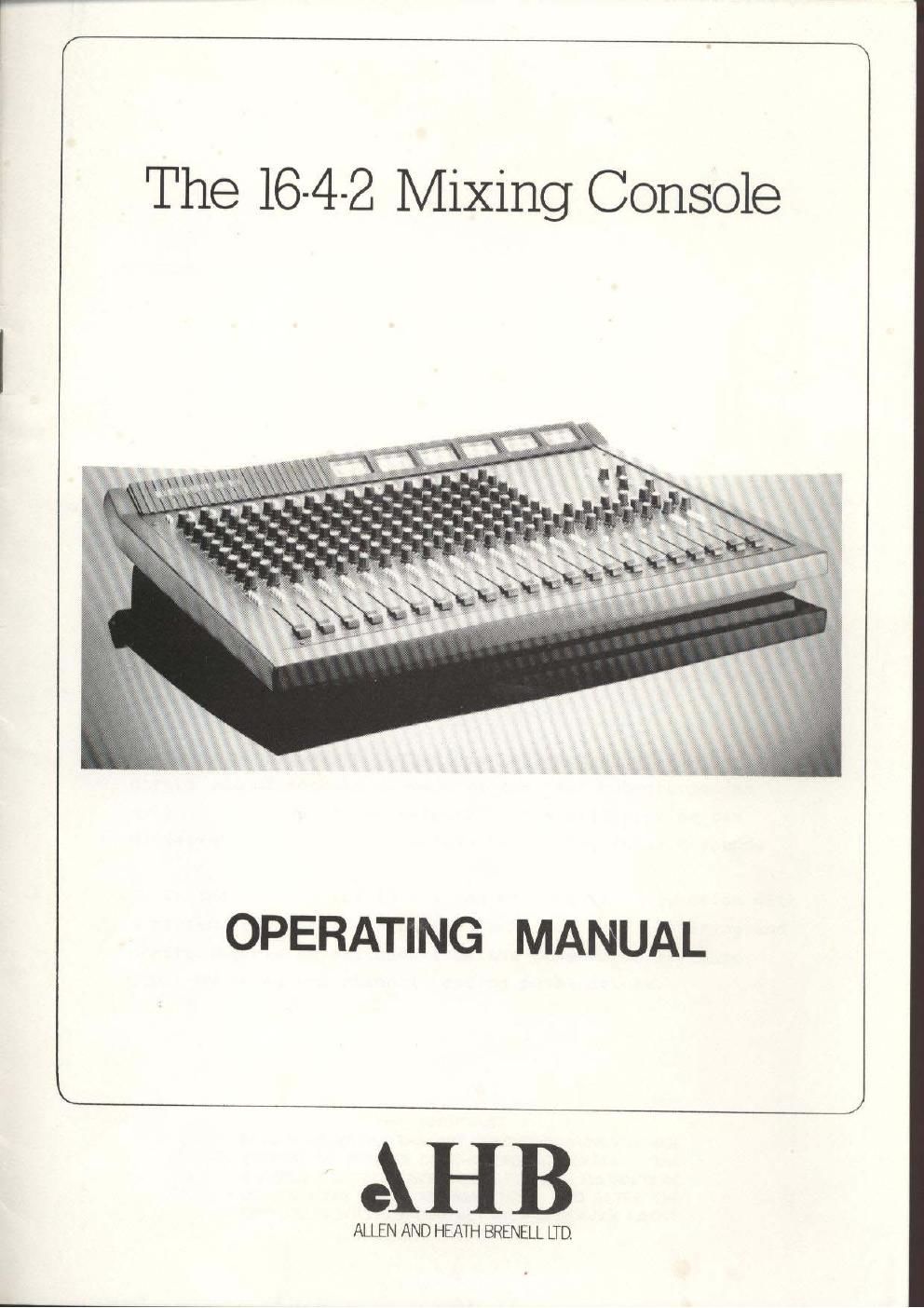

The 16-4-2 Mixing Console
OPERATING MANUAL
AHB
ALLEN AND HEATH BRENELL LTD
Page 2
INTRODUCTION
The Allen and Heath 16.4.2 is a highly compact and light-
weight Mixing Console which incorporates all the facilities
normally required for live sound mixing and for multi-track
recording.
Up to six separate outputs can be used by utilising the
direct output sockets of each of the four sub-groups, as
well as the main stereo outputs. This will provide six
different mixes - often useful when mixing theatre sound.
In the studio, the 16.4.2 can be used in conjunction with
a stereo recorder and a multi-track recorder. Metering and
monitoring can be switched from the console to any tape
input by using the channel routing push-buttons.
IMPORTANT
BEFORE OPERATING THE UNIT, CHECK THE MAINS VOLTAGE
SETTING AS PRINTED ON THE PACKAGE LABEL. THE
CONSOLE HAS BEEN FACTORY SET FOR 110 - 120 VOLTS AC
OR 220 - 240 VOLTS AC, 50/60 HZ. TO ALTER THE
OPERATING VOLTAGE, CONTACT AN AHB SERVICE AGENT.
