Akai GXF 95 Owners Manual

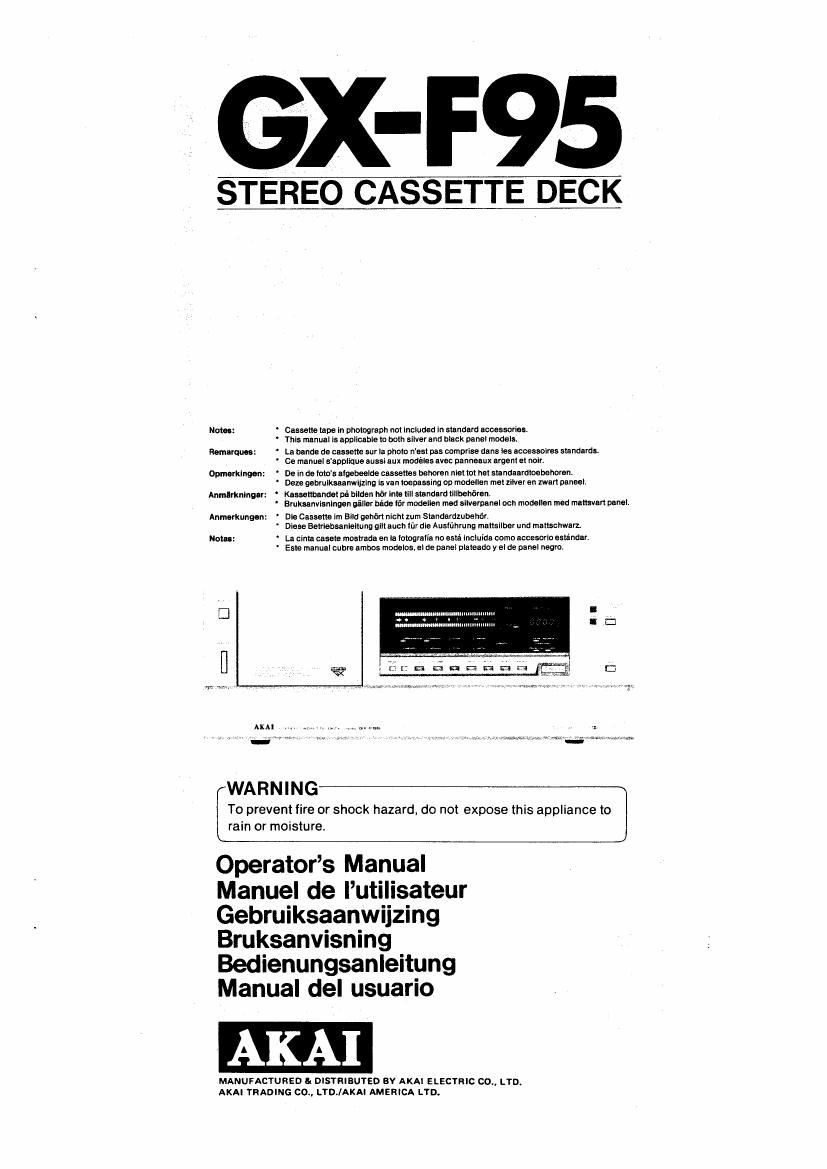

Page 1

X-F 95

STEREO CASSETTE DECK

Nam: ' Custom ups In pholwraph nal Included In standard accessoriesl
This manual ls Applicable la both silver Bnfl black panel models.
Rum-lance: La bands as cassette sur la phom n'eal pas comprlse mm: [as mean-wuss standards.

so manual s'appflque Iussl aux madéles ave: pannenux urgent a! mic

Omurklngon: Be in de Mo's afgeboeme CBSSRHSS behoren niel lot I181 slandusmioebeholen.
' Dene gabrulksaanwiizing ls van ioepassmg OD modsllen m3! ziNer an zwarl paneel.
Anmfiknlngm: ' Knsselmandsi 9 blldan hf)! inns (Ill smndlrd tlllbahéran.

Blumnvismnaan 95M! bide far model!» mad Biwerpanal och modellsu mad malnven DIHEI.

Anmerkungun: Dle Cassette Em and 9611611 nicm zum Slandarfllubahfir,

' Diego Bemobeameuung am such lin die Ausmnm n9 maltsilbev und manschwarz
La clnm easel: moshm en la lamaralia no eslé incluiaa coma accasmla emnd-r.
Esta manual cubre ambos modulus. el ac panel plalsado y el de panel negrov

Nam:

U"

WARNING

To prevent fire or shock hazard, do not expose this appliance to
rain or moisture.

Operators Manual
Manuel de Iutilisateur
Gebruiksaanwijzing
Bruksanvisning
Bedienungsanleitung
Manual del usuario

~ AKA]

MANUFACTURED & DISTRIBUTED BY AKA! ELECTRIC 00.. LTD.
AKAI TRADING 60., LTDJAKAI AMERICA LTD.

Page 2

WARNING

Turn over the deck and remove the packing foam which was placed
inside the control door to protect the deck during shipment before
operating the deck.

Voltage Selection

Power requirements for electrical equipment differ from area to
area.

Please ensure that your machine meets the power requirements in
your area.

it in doubt, consult a qualified electrician.

120V, 60 Hz for USA and Canada

110V/120V/220V/240V, 50/60 Hz switchable for other countries.

VOLTAGE CONVERSION

Voltage conversion (Models for Canada and USA are not equipped
with this facility.) Each machine is preset at the factory according
to destination. but some machines can be set to 110V, 120V, 220V
or 240V as required. If your machines voltage can be converted:
1. Disconnect the power cord.

2. Turn the Voltage Selector on the rear panel with a screwdriver

until the correct voltage appears in the window.

VOLTAGE
SE L ECTO R

Sc rewdriver

rFt'JFI CUSTgMEFtS IN THE UK
T

cured n accordance with the tollowing
Code: Green-and-yallow: Earth

Blue: Neutral - - »
Brown: Live . .
As the colours at the wires in the mains
lead of this apparatus may not corre-
spend with the coloured markings
identifying the terminals in your plug,
proceed as followi: 5
The wire which is coloured green-and
yellow must be connected to the ter- ,
mlnsl in the plug which is marked by Blue Brown
the latter E or by the safety earth aym' (WWII (Live)
bet 4: or coloured green or coloured
green-andyellow .
The wire which is coloured olua must be connected to the ter-
mine] which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the ter-
ruins which is marked with the letter L or coloured rad.

we con: FLEX
Wu N1

The wires in this mains lead are col-
oured in accordance with the following
coda: Bin: Neutral

,, .Bgown: Live
As the eotours of the wires in the mains
lead of this apparatus may not corre-
spond with the coloured markings
Identifying the terminals' In your plug.
proceed as follows:
The wire which is coloured hiua must
be connected to the terminal which Is
marked with the letter N or coloured
black. Blue 59""
The wire which Is coloured brown must (Neutral) (Im,
be connected to the terminal which Is
marked with the letter L or coloured
red ,

Do not connect any wire to the larger pin marked E or or
when wiring a plug. Ensure that all terminals are securely
tillhtened and that no loose strands at wire exist.

[
FOR CUSTOMERS IN AUSTRALIA
If your machine comes with a three core power cord. FOR YOUR
SAFETY
I. insert this plug only into an effectively earthed three-pin plug
socket outlet.
if any doubt exists regarding the earthing, consult a qualified
electrician:
Extension cords, it used must be three core correctly

2
3.
kt wired J

PRECAUTIONS

1. Use only household AC power sources.
Never use DC power sources.

2. Touching the plug with wet hands risks dangerous electric
shocks.

Always pull out by the plug and never the cord.

3. Make sure the power consumption to each audio component
does not exceed wattage specified.
Only connect other audio components.

4. Only let a qualified professional repair or reassemble the
equipment. An unauthorized person may touch the internal
parts and receive a serious electric shock.

5. Never allow a child to put anything, especially metal into this
equipment. A serious shock or malfunction may occur.

10.

11.
12.

if water is spilled on this equipment, disconnect and call your
dealert

. Make sure the equipment is well ventilated and away from

direct sunlight.

Keep away from heat (stoves, etc.) to avoid damage to the
external surface and internal circuits.
Avoid spray-type insecticides which will damage the equIP
ment and may ignite suddenly.

To avoid damaging the finish never use paint thinner or other
similar chemicals.

Always place the equipment on a flat and solid surface.
Please read this manual in its entirety and keep it handy for
further reference.
