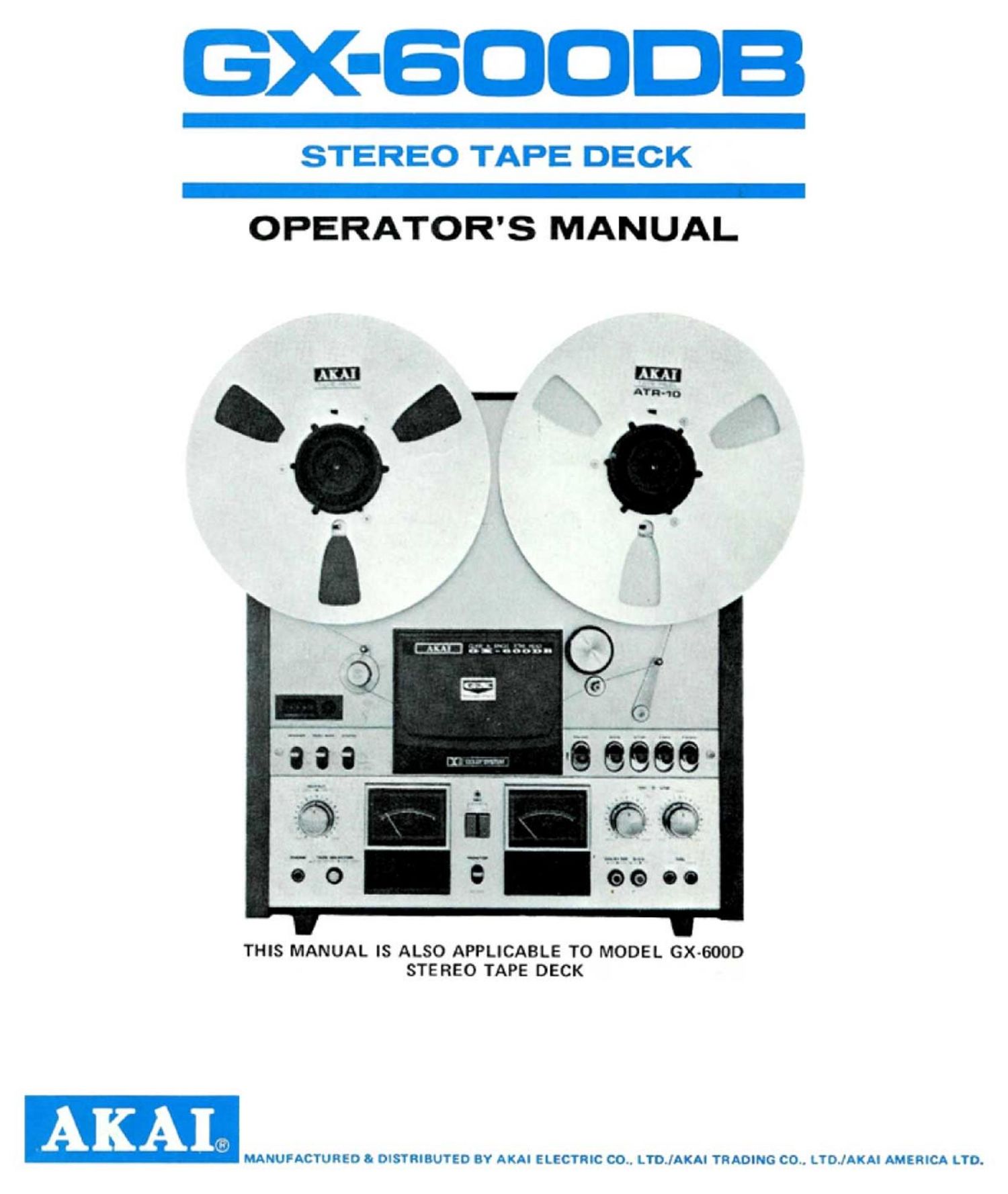

Page 1
GX-EDDDB
STEREO TAPE DECK
OPERATOR'S MANUAL
THIS MANUAL IS ALSO APPLICABLE TO MODEL GX-GOOD
STE REO TAPE DECK
- MANUFACTURED & DISTRIBUTED BY AKAI ELECIRIC CO.. LTDJAKAI TRADING CO.. LTOJAKAI AMERICA LTD.
Page 2
CEE. CSA. and UL Standard models are not equipped
with a Voltage Selector and cycle conversion ap-
paratus. Therefore. voltage and cycle conversion is
not necessary, If your machine corresponds to any
of these standards. please disregard all references to
voltage and cycle adjustment throughout this manual
(EE Models: 220 V. 50 Hz.
CSA Models: 130 V, 60 Hz.
UL Models: l20 V. 60 HZ.
INDEX
Controls ..................................... 2
Operating precautions .......................... 4
4-Track stereo recording and
playback system ............................. 4
4-Track monaural recording and
playback system ............................. 4
Tape loading .................................. 5
Tape speed selection ............................ 5
Dolby noise reduction system .................... 5
Sound monitoring .............................. 6
Connections for playback ....................... 7
Playback ..................................... 8
Connections for recording ...................... 9
Recording .................................... lO
Sound-on-sound recording ....................... 1 1
Sound mixing ................................. 11
Tape erasing .................................. 1 1
Tape splicing and editing ........................ 11
Head block cleaning ............................ 12
Head demagnetizing ............................ 12
Voltage and cycle conversion .................... 13
Standard accessories ............................. 14
Technical data ................................. 14
Trouble shooting chart ......................... 15
1
