Page 2

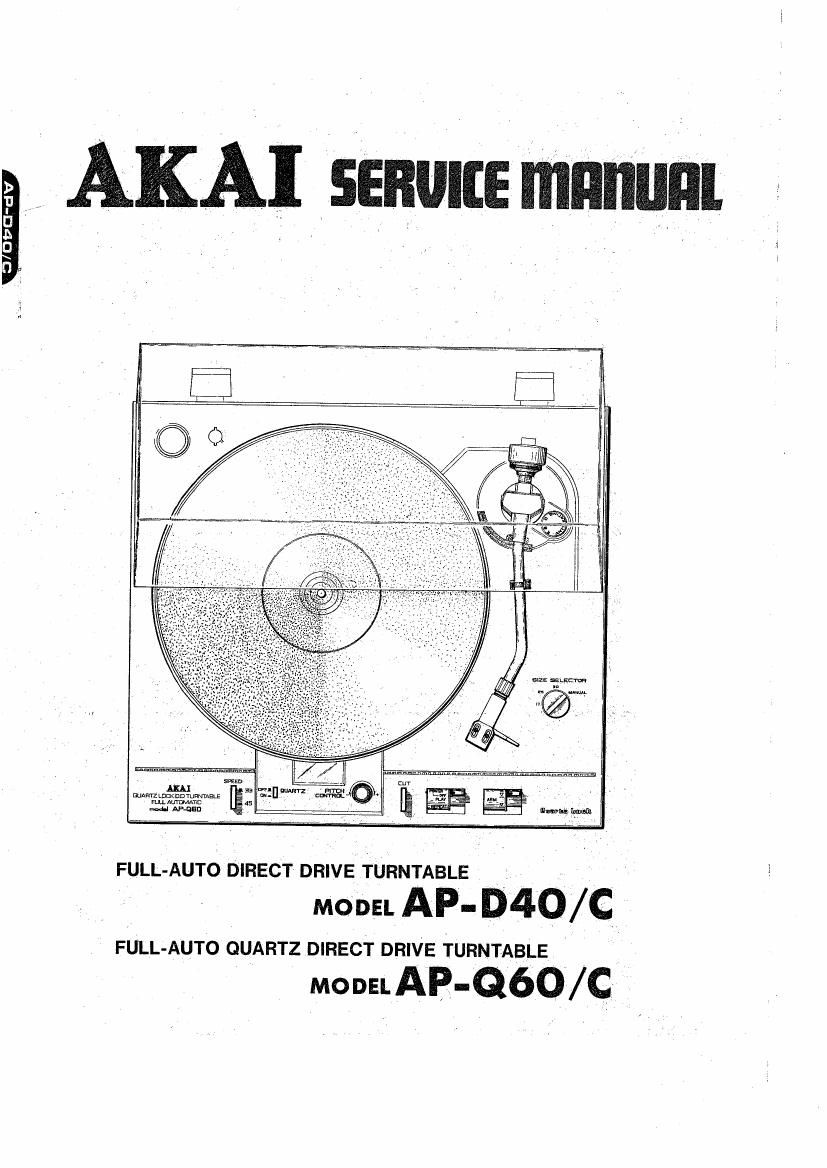

AP-D40/C
AP-QSO/C
FULL-AUTO DIRECT DRIVE TURNTABLE
MODEL AP'D40/C
FULL-AUTO QUARTZ DIRECT DRIVE TURNTABLE
MODEL AP-Q60/C
ALSO APPLICABLE TO BLACK PANEL MODEL
SECTION 1 SERVICE MANUAL .................... 3
SECTION 2 PARTS LIST 39
SECTION 3 SCHEMATIC DIAGRAM ................ 59
Page 21
4. RETURN PLUNGER POSITION ADJUSTMENT
MAW GEAR
REJECT
PLATE
GAP A
i T
PLUNGER +1 :
SLSOI I : REJECT LEVER
F::::1
l :
ADJUSTMENT 7
SCREW 3 J l
i
Fig. 19
Remove the motor block. Press the reject lever down where the gap A between the reject lever and plunger
with a finger until the reject plate touches the main disappears. (Refer to Fig. 19).
gear pin. Operate the plunger (SL901) in this position After adjustment, confirm that the Auto-Return is
and adjust the installation screw at exactly the point operating.
5. LEAD-IN/LEAD-OUT ADJUSTMENT
LEAD- lN/LEAD-OUT ADJ USTMENT
SCREW CA
Fig. 20 Lead-in/Lead~out Adjustment
21
