Aiwa CS DEX150 Owners Manual

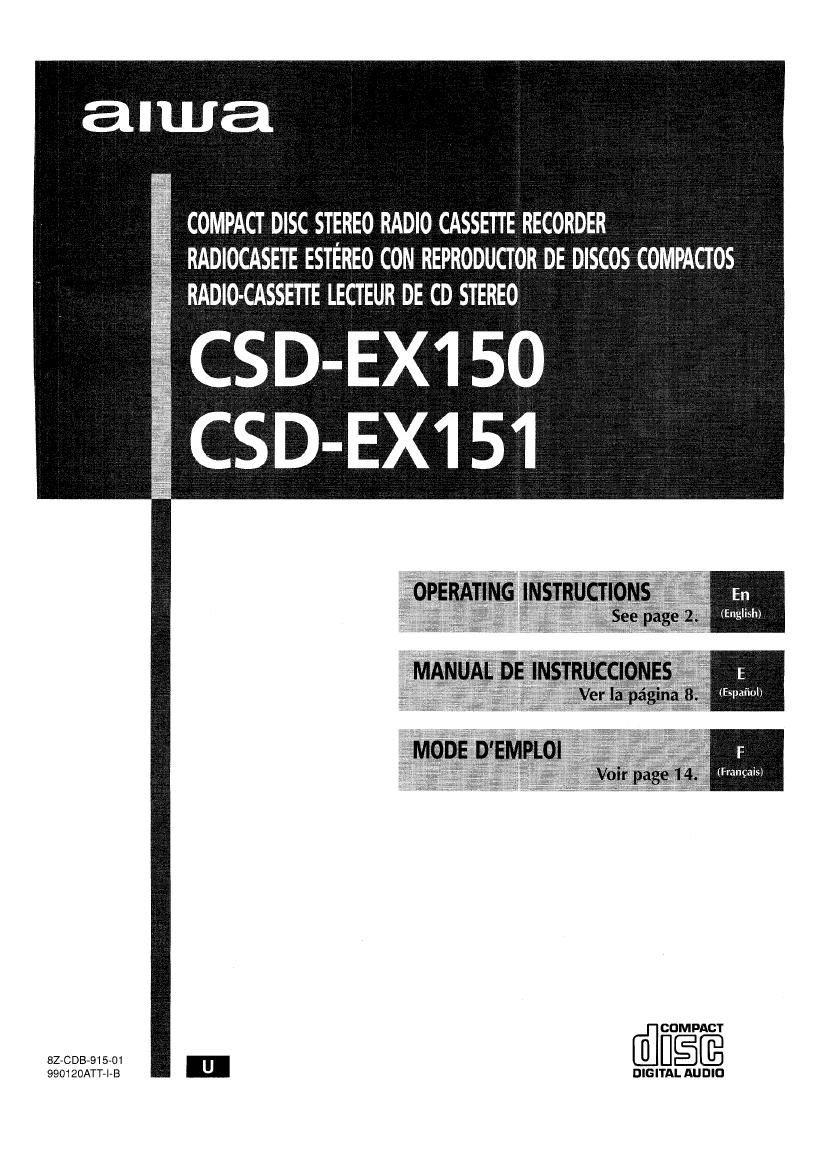

Page 1

COMPACT DISC STEREO RADIO CASSETTE RECORDER
RADIOCASETE ESTEREO CON REPRODUCTOR DE DISCOS COMPACTOS
RADIO-CASSETTE LECTEUR DE CD STEREO

CSD-EX1 50

CSD-EX151

COMPACT
az-CDB-915-o1 T j |D§[E
990120ATI'»|~B u

DIGITAL AUDIO

Page 2

WARNING

TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.

RISK OF ELECTRIC SHOCK
DO NOT OPEN

fil

CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACIQ.

NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL."

Explanation of Graphical Symbols:

& shock to persons.
A

OWNERS RECORD

appliance.

For your convenience, record the model number (you will find it at the
bottom of the unit) and serial number (you will find it in the battery
compartment) in the space provided below. Please refer to them when

you contact your AIWA dealer in case of difficulty.

The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alertthe user
to the presence of uninsulated dangerous volt-
age" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric

The exclamation point within an equilateral trian-
gle is intended to alert the user to the presence of
Important operatlng and maintenance (servicing)
instructions in the literature accompanying the

Precautions

Read the Operating Instructions carefully and completely
before operating the unit Be sure to keep the Operating

Instructions for future reference. All warnings and cautions in

the Operating Instructions and on the unit should be strictly
followed, as well as the safety suggestions below.

Installation

1 Water and moisture - Do not use this unit near water,
such as near a bathtub, washbowl, kitchen sink, laundry
tub, in awet basement, swimming pool, or the like.

N

heating vents, stoves, or other appliances that generate
heat.

It also should not be placed in temperatures less than 5°C

(41°F) or greater than 35°C (95°F).

bu

Ventilation - The unit should be situated with adequate

space around it so that proper heat ventilation is assured.

Allow 10 cm (4 in.) clearance from the rear and the top of

the unit and 5 cm (2 in.) from each side.

- Do not place the unit on a bed, rug, or similar surface
that may block the ventilation openings.

- Do not install the unit in a bookcase, cabinet, or airtight
rack where ventilation may be impeded.

2 ENGLISH

Heat - Do not use this unit near sources of heat, including

Mounting surface - Place the unit on a flat, even surface.

5 Objects and liquid entw - Take care that objects or
liquids do not get inside the unit through the ventilation
openings.

6 Carts and stands - When placed or
mounted on a stand or cart, the unit should
be moved with care.

Quick stops, excessive force, and uneven
surfaces may cause the unit or cart to
overturn or fall.

7 Condensation - Moisture may form on the CD pickup
lens when:

- The unit is moved from a cold spot to a warm spot

- The heating system has lust been turned on

- The unit is used in a very humid room

- The unit is cooled by an air conditioner

When this unit has condensation inside, it may not
function normally. Should this occur, leave the unit for a
few hours, then try to operate again.

8 Wall or ceiling mounting - The unit should not be
mounted on a wall or ceiling, unless specified in the
Operating Instructions.

Electric Power

1 Power sources - Use on batteries or AC house current,
as specified in the Operating Instructions and marked on
the unit.

2 Polarization - As a safety feature, some units are
equipped with polarized AC power plugs which can only
be inserted one way into a power outlet, If it is difficult or
impossible to insert the AC power plug into an outlet, turn
the plug over and try again. If it still does not easily insert
into the outlet, please call a qualified service technician to
service or replace the outlet. To avoid defeating the
safety feature of the polarized plug, do not force it into a
power outlet,

3 AC power cord
- When disconnecting the AC power cord, pull it out by

the AC power plug. Do not pull the cord itself.

- Never handle the AC power plug with wet hands, as this
could result in fire or shock.

- Power cords should be firmly secured to avoid being
bent, pinched, or walked upon. Pay particular attention
to the cord from the unit to the power socket.

- Avoid overloading AC power plugs and extension cords
beyond their capacity, as this could result in fire or
shock.

4 Extension cord - To help prevent electric shock, do not
use a polarized AC power plug with an extension cord,
receptacle, or other outlet unless the polarized plug can
be completely inserted to prevent exposure of the blades
of the plug,

5 When not In use - Unplug the AC power cord from the
AC outlet or remove all the batteries if the unit will not be
used for several months or more. When the cord is
plugged in, a small amount of current continues to flow to
the unit, even when the power is turned off.

Maintenance

Clean the unit only as recommended in the Operating
Instructions.

Damage Requiring Service

Have the units serviced by a qualified service technician if:

- The AC power cord or plug has been damaged

- Foreign objects or liquid have got inside the unit

- The unit has been exposed to rain or water

- The unit does not seem to operate normally

- The unit exhibits a marked change in performance

- The unit has been dropped, or the cabinet has been
damaged

D9 N9 A EME £2 §ERVICE THE LJNI XQLIBSELF.

Page 7

:se'rr WESLEEP

The unit can be turned off automatically at a specified time.
- While CD function is selected, operate the following
procedures in stop mode.

1 Press REPEAT while pressing STOP/
MEMORY _.

The dot and number flash

Ii STOP/MEMORY is kept pressed, another operation
may start.

2 Within 4 seconds, press I44 or >>l to specify
the time until the power is turned off.

Each time it is pressed. the time changes between 10
and 90 minutes in 10-minute steps.

ExamplezThe unit will turn off
after 30 minutes.

While the sleep timer works
the dot keeps flashing.

The volume level or
a CD track number

To check the time remaining until the power is turned off
Repeat step 1 shown above. The remaining time is
displayed for 4 seconds.

To cancel the sleep timer
Display the remaining time and press K4 or »I
repeatedly until 0 (off) is displayed.

NOTE
If the unit is turned off during tape playback, 4 on the deck
will not be released. Press l/: to release 4.

Maintenance
To clean the cabinet

Use a soft cloth lightly moistened with mild detergent
solution. Do not use strong solvents such as alcohol,

benzine or thinner.

To clean the heads
When the tape heads are dirty;

- high frequency sound is not emitted

- the sound is not adequately high
- the sound is off-balance

- the tape cannot be erased

- the tape cannot be recorded on

After every 10 hours ol use, clean the tape heads with a

head cleaning cassette.

Use separately sold dry-type or wet-type cleaning

cassette.

Refer to the instructions of the cleaning cassette for

details.

To clean the lens

Use a cotton swab slightly
moistened with cleaning fluid.
Wipe gently from the center to
the edge.

ENGLISH 7
