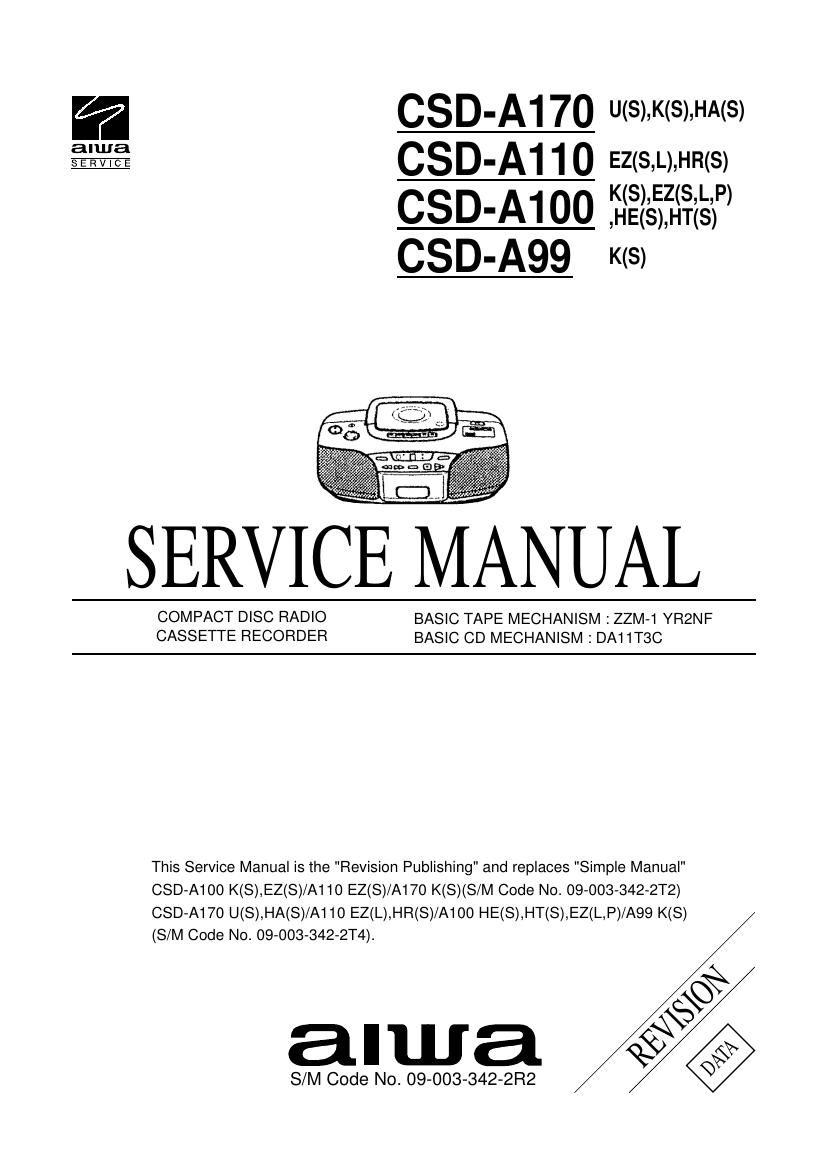

Aiwa CS DA110 Service Manual

Page 2

SPECIFICATIONS

HR, HE MODELS

Tuner section
Frequency range, antenna7 FM: 57.5 - 108.0 MHz Flod antenna.
AM: 530 - 1.605 kHz Ferrite car antenna

Deck section

Track lormat 7 4 tracks, 2 channels/ Frequency range 7 Normal tape:

50 - 12.500 Hz (EIM) I Recording system ~ AC bias] Erasing system

7 Magnet erase / Heads 7 Recording/playback head (1 ), Erasure head
1

co pI-yer section
Disc - Compact disc/ Scanning method 7 Non-Dantacl optical scanner
(semiconductor laser)

General

Speaker - too mm cone type (2) 1 Output 7 Headphones rack (stereo
rninrjack) / Power output7 2.5 w + 2.5 W (EIAJ 7 ohms. T.H D. 10%),
(.9 w +1.9 w (DIN W. Rated Power) / Power requirements 7 DC t2 v
using eight size 0 (R14) batteries, ac no - 120 W220 - 240 v
switchable. 50/60 Hz/ Power consumption 7 14 w / Dimensions 7 420
(W) x 1a5 (H) x 250 (D) min / Weight - 3.45 kg (excluding batteries)

I Design and specifications are subject to change
without notice.

HA MODEL

Tuner section
Frequency range, antenna - FM: 875 » 109.0 MHz Hod antenna.
AM: 530 ~ 1.7m kHz Ferrite car antenna

Deck section

Track tormat 7 4 tracks. 2 channels 1 Frequency range - Normal tape
so - 12500 Hz (Elm) r Recording system 7 AC bias / Erasing system
7 Magnet erase / Heads - Hecording/ptayoack head (1). Erasure head
(1)

cu player section
Disc 7 Compact disc / Scanning method 7 Nanacontact optical
scanner (semiconductor laser)

General

Speaker 7 too mni cone type (2) / Output 7 Headphones jack
(stereo mintvi ~k) / Power output - 2.5 W s 2 5 W (EIAJ 7 ohms.
T,H,D. (0%), 1.9 w +1 9 w (DIN 1% Rated Power) I Power
requirements 7 DC 12 v using eight size 5 (RM) patteries, AC 110 -
(20 V1220 - 240 v swrtchahle. 50/60 Hz / Power consumption 7 14 w
(Dimensions 7 420 (W) x 135 (H) x 250 (0) mm ( Weight - a 45 kg
(excluding batteries)

I Design and specifications are subject to change
without notice.

K, EZ MODELS

Tuner section

Frequency range, antenna7 FM: (57.5 . 108.0 MHz Hod antenna,

MW: 530 - 1,605 kHz Ferrite bar antenna. Lw: 150 - 285 kHz Ferrite bar
antenna

Deck section

Track lormot - 4 tracks 2 channels I Frequency range 7 Normal tape:
50 » 12500 Hz lElAJ) / Recording system - Ac bias / Erasing system 7
Magnet eraser Heads 7 Recording/playhack head (i). Erasure head (1)

CD player seclion
Disc - compact disc/ Scanning method - Non-contact optical scanner
(semiconductor laser)

General
Speaker - 100 mm cone type (2) / Output - Headphones jack (stereo
mini-rack) (Power output- 2 5 W + 2.5 w IEIAJ 7 ohms, T.H.D. 10%
Do), 1.9 w +1.9 w (DIN 1% Rated Power) / Power requirements 7 no
12 v using eight size 0 (H14) batteries, AC 230 V. 5a Hz/ Power
consumption 714 w / Dimensions 7 420 (W) x 135 (H) x 259 (D) mm /
Weiuht - 3.45 kg (excluding batteries)

I Design and specifications are subject to change
without notice.

U MODEL

Tuner sectlon
Frequency range. antenna - FM, 875 - 38.0 MHz Rod antenna.
AM. 530 - 1.7:I kHz Ferrite Dar antenna

Deck section

Track lormat 7 4 tracks, 2 channels / Frequency range 7 Normal tape:
so - 12,500 Hz (EiAJ) ( Recording system 7 Ac oias / Erasing system 7
Magnet erase / Heads 7 Recording/playback head (1), Erasure head (1)

CD player section
Disc 7 Compact disc 1 Scanning method 7 Non-contact optical scanner
(semiconductor laser)

General

speaker 7 too mm cone type (2) (Output 7 Headphones jack (stereo
mini-(ack) / Power output 7 2 5 w c 2 5 w (EN 7 ohms. TM D. 10%)/
Power requirements 7 DC 12 v using eight size c (F114) batteries, AC

12o v. 60 Hz / Power consumption 7 is w / Dimensions 7 420 (W) x

i85 (H) x 250 (D) mm (issrii x 7% x 97/» ini / Weight 7 3.45 kg (7 lies.
to oz ) (excluding batteries)

I Design and specifications are subject to change
without notice.
