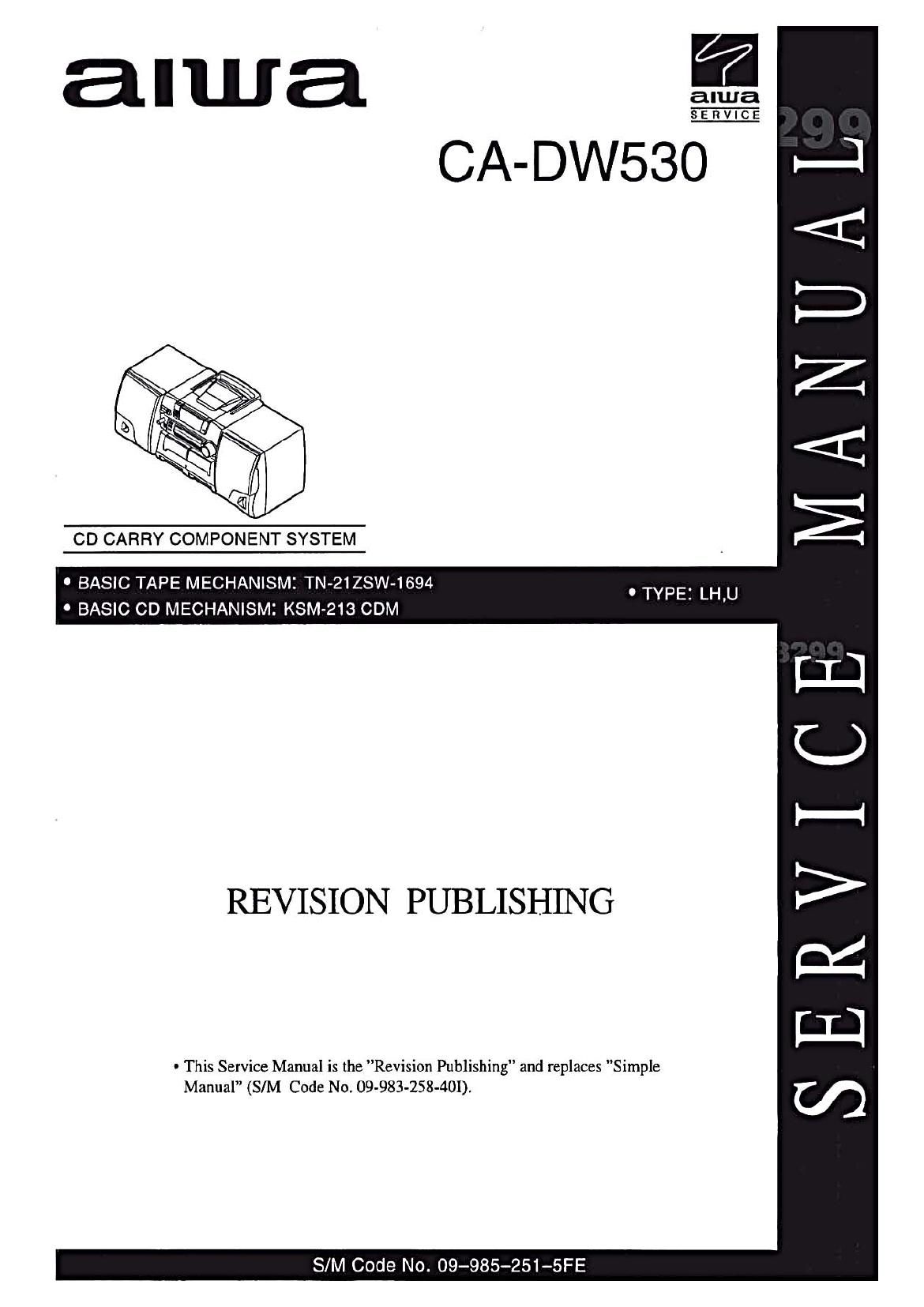

Aiwa CA DW530 Service Manual

Page 1

enuma E

CD CARRY COMPONENT SYSTEM

' BASIC TAPE MECHANISMS TN-21ZSW-1694

' TYPES LH,U
0 BASIC CD MECHANISMS KSM-213 CDM

REVISION PUBLISHING

- This Service Manual is [he "Revision Publishing" and replaces "Simple
Manual (SIM Code No. 09-983-258-401).

SERVICE MANUAL

S/M Code No. 09-985-251-5FE

Page 2

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING

This set employs laser. Therefore. he sure to follow carefully
the Instructions below when servicing.

WARNING"

WHEN SERVICING. DO NOT APPROACH THE LASER EXIT
WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY
TO CONFIRM LASER BEAM EMISSION. BE SURE TO
OBSERVE FROM A DISTANCE OF MORE THAN 300m
FROM THE SURFACE OF THE OBJECTIVE LENS ON THE
OPTICAL PICK-UP BLOCK.

I Caution: Invisible laser radiation when
open and interlocks defeated avoid expo-
sure to beam.

I Advarsel: Usynllg laserstailng ved Abnlng.
nér slkkerhedsatbrydere er ude at tunktlon.
Undga udsaattelse for strafing.

VAROITUSl

Latteen Kéyttéminen muulla kuin lassa kayttéohjeessa mainli-
ulla tavalla saattaa altlstaa kayt-tAIEn turvallisuusluokan 1 ylit-
tavalle nakymattOmalle lasersAtellyile.

VARNINGI

Om apparalen envétnds pé annat satt an vad som speciflceras
| denna bruksanvising. kan anvéndaren utsattas for osynling
laserstramlng. som Overskrlder gransen titr laserkiass 1.

Precaution to replace Optical block

(KSS - 2133)

CAUTION

Use of controls or adlustments or pertorrnance of procedures
other than those specified herein may result In hazardous radi-
ation exposure.

ATTENTION

L'utilisation de commandos. régiages ou procedures autres que
oeux specifies pout entrainer une dangersuse exposition aux
radiations.

ADVARSELI
Usynllg laserstéllng ved Abnlng. n6: slkkerhedsaforydereer ude
at tunktion. Undga udsattelse tor soiling.

This Compact Disc player Is classified as a CLASS 1 LASER
product.
The CLASS 1 LASER PRODUCT label is located on the rear
exterior.

CLASS 1
KLASSE 1

LASER PRODUCT
LASER PRODUKT
LASER LAITE
LASER APPARAT

LUOKAN I
KLASS 1

PICK-UP Assy P.C.B

Body or clothes electrostatic potential could ruin
laser diode in the optical block. Be sure ground
body and workbench. and use care the clothes
do not touch the diode.

1) After the connection. remove solder shown In
rightllgure.

Solder

Page 28

REFERENCE NAME LIST

ELECTRICAL SECTION

DESCRIPTION REFERENCE NAME
ANT ANTENNAS

C- CHIP

C-CAP CAP. CHIP

C-CAP TN CAP. CHIP TANTALUM
C-COIL COIL. CHIP

C-Dl DIODE, CHIP

C-DIODE DIODE. CHIP

C-FET FET. CHIP

C-FOTR FILTER. CHIP

C-JACK JACK. CHIP

C-LED LED. CHIP

C-RES RES. CHIP

C-SFR SFR, CHIP

C-SLIDE SW SLIDE SWITCH. CHIP
C-SW SWITCH. CHIP

CTR TRANSISTOR, CHIP
C-VR VOLUME. CHIP
C-ZENER ZENER. CHIP

CAP. CER CAP, CERA-SOL

CAP. E CAP. ELECT

CAP. M/F CAP. FILM

CAP, TC CAP. CERA-SOL

CAP. TC-U CAP. CERA-SOL SS
CAP. TN CAP, TANTALUM
CERA FIL FILTER, CERAMIC

CF FILTER. CERAMIC

DL DELAY LINE

E/CAP CAP. ELECT

FILT FILTER

FLTR FILTER

FUSE RES RES. FUSE

MOT MOTOR

P-DIODE PHOTO DIODE
P-SNSR PHOTO SENSER

P-TR PHOTO TRANSISTOR
POLY VARI VARIABLE CAPACITOR
PPCAP CAP. PP

PT POWER TRANSFORMER
PTR. RES PTR. MELF

RC REMOTE CONTROLLER
RES NF RES. NON-FLAMMABLE
RESO RESONATOR

SHLD SHIELD

SOL SOLENOID

SPKR SPEAKER

SW. LVR SWITCH. LEVER

SW. RTRY SWITCH. ROTARY

SW. SL SWITCH. SLIDE

TC CAP CAP. CERA-SOL

THMS THERMISTOR

TR TRANSISTOR

TRIMER CAP. TRIMMER
TUN-CAP VARIABLE CAPACITOR
VIB. CER RESONATOR. CERAMIC
VIB. XTAL RESONATOR. CRYSTAL
VR VOLUME

ZENER DIODE, ZENER

fi-Ezfifiln-X
35 ilfifig

7-1DHEEEE1I
