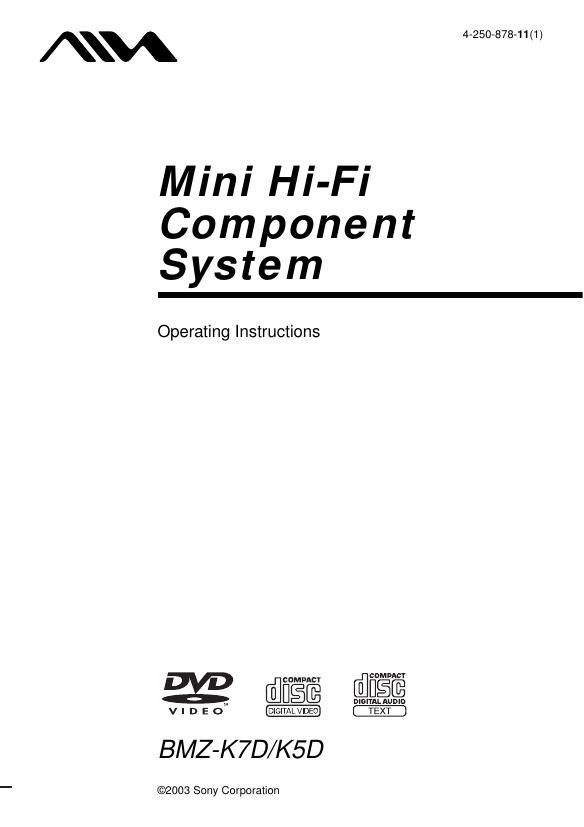

Aiwa BM ZK7D Owners Manual
This is the 88 pages manual for Aiwa BM ZK7D Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Aiwa BM ZK7D Owners Manual (Ocr-read)
Page 1
2GB To prevent fire or shock hazard, do not expose the unit to rain or moisture. To prevent fire, do not cover the ventilation of the apparatus with news papers, table-cloths, curtains, etc. And dont place lighted candles on the apparatus. To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus. This appliance is classified as a CLASS 1 LASER product. This label is located on the rear exterior. The following caution label is located inside the apparatus. Dont throw away the battery with general house waste, dispose of it correctly as chemical waste. Except for Euro/UK, Russian models ENERGY STAR ® is a U.S. registered mark. As an E NERGY S TAR ® partner, Sony Corporation has determined that this product meets the E NERGY STAR ® guidelines for energy efficiency.This system incorporates Dolby* Digital, Dolby Pro Logic (II) adaptive matrix surround decoder, and the DTS** Digital Surround System. * Manufactured under license from Dolby Laboratories. Dolby, Pro Logic and the double-D symbol are trademarks of Dolby Laboratories. ** Manufactured under license from Digital Theater Systems, Inc. DTS and DTS Digital Surround are registered trademarks of Digital Theater Systems, Inc. US and foreign patents licensed from Dolby Laboratories. Notes on DTS audio playback To enjoy DTS Digital Surround of DVD or CD, connect external 5.1 channel DTS Digital Surround Decoder to the DIGITAL OUT jack of this system (BMZ-K7D:Euro/UK, Russian models, BMZ- K5D:all models only). When you playback the CD recorded in DTS format, excessive noise may be heard from the speakers. Set the volume to minimum and be careful not to damage your speaker system. AC power cord must be changed only at the qualified service shop. The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off. WARNING Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.
Page 2
3GB How to use this manual ........................... 5 Playable discs .......................................... 5 Getting Started Hooking up the system............................ 8 Positioning the speakers (BMZ-K7D only) ............................ 12 Setting the clock.................................... 13 Changing the LEVEL meter ................. 13 Guide to the MULTI JOG dial .............. 14 DVD/VIDEO CD/CD/MP3/JPEG – Play Inserting a disc ...................................... 15 Ejecting a disc ....................................... 15 - To eject a disc - To eject all loaded discs Playing a disc ........................................ 16 - Normal Play/Shuffle Play Playing DVDs using the menu.............. 19 Playing VIDEO CDs with PBC functions (Ver. 2.0)......................................... 20 - PBC Play Playing JPEG Image Files .................... 20 Playing repeatedly................................. 22 - Repeat Play Creating your own program .................. 23 - Program Play Searching for a title/chapter/track/index/ album/file ........................................ 25 DVD – Various functions Changing the sound/subtitle/language .................. 27 Adjusting the angle/image .................... 30 Restricting disc playback ...................... 32 - CUSTOM PARENTAL CONTROL/PARENTAL CONTROL Speaker settings .................................... 36 - SPEAKER SETUP List of items that can be displayed and selected by disc type ....................... 38 System setup item list ........................... 39 Tuner Presetting radio stations ........................ 40 Listening to the radio ............................ 41 - Preset Tuning - Manual Tuning RDS features (BMZ-K7D: Euro/ UK models only) ................................... 42 Tape – Play Loading a tape ...................................... 45 Playing a tape........................................ 45 Tape – Recording Recording your favorite CD tracks on a tape ................................................. 46 - CD-TAPE Synchro Recording Recording on a tape manually .............. 46 - Manual Recording CONNECTING A PERSONAL COMPUTER (BMZ-K7D only) Installing the Software on your PC....... 47 Installing the USB Driver ..................... 48 To check the installation of the USB driver .............................................. 49 Installing Winamp3 .............................. 50 Installing the Winamp3 BMZ Plug-in ............................................ 50 To hear the sound of a file which is played back with a personal computer ....... 51 To uninstall the software ...................... 52 Frequently Asked Questions for USB function........................................... 52 Sound Adjustment Adjusting the sound .............................. 54 Selecting the surround effect ................ 55 Singing along: Karaoke ........................ 56 Table of Contents continued
Page 4
5GB This manual mainly explains operations using the remote, but the same operations can also be performed using the buttons on the unit having the same or similar names. The North American model is the model used for OSD (on-screen display) illustration purposes. The following symbols are used in this manual. You can play back the following discs on this system. Other discs cannot be played back. List of playable discs The DVD VIDEO logo is a trademark. Region code of DVDs you can play on this system Your system has a region code printed on the back of the unit and will only play DVDs labeled with identical region code. DVDs labeled will also be played on this system. If you try to play any other DVD, the message Playback prohibited by area limitations. will appear on the TV screen. Depending on the DVD, no region code indication may be labeled even though playing the DVD is prohibited by area restrictions. Discs that this system cannot play CD-ROMs (except for extension .MP3, .JPG, or .JPEG) CD-Rs/CD-RWs other than those recorded in the following formats: – music CD format – video CD format – MP3/JPEG format that conforms to ISO9660* 1 Level 1/Level 2, Joliet or Multi Session*2 How to use this manual Symbol Meaning Functions that can be used with DVDs Functions that can be used with VIDEO CDs Functions that can be used with audio CDs Functions that can be used with MP3 audio tracks Functions available for JPEG files Playable discs Format of discs Disc logo Contents DVD VIDEOs Audio + Video VIDEO CDs Audio + Video Audio CDs Audio CD-R/CD-RW (audio data) Audio CD-R/CD-RW (MP3 files) Audio CD-R/CD-RW (JPEG files) Video Format of discs Disc logo Contents AL Region code (BMZ- K7D: Euro/UK, Russian models) DVD DECK RECE VERAC 230V 50/60Hz W MODEL NO CX BK7 SER AL NO 4 249-187-2 CEL/CEK Sony Co porat on X X Region code (BMZ- K7D: except Euro/UK, Russian models, BMZ- K5D: all models) continued
Page 16
DVD/VIDEO CD/CD/MP3/JPEG – Play 17 GB Tips You can change the play mode between 1DISC, ALL DISCS and ALBM using the on-screen display as follows: 1Press DVD DISPLAY in stop mode. The Control Menu appears. 2Press M or m to select PLAY MODE, then press ENTER. 3Press M or m to select the desired play mode, then press ENTER. Press CLEAR to cancel SHUF mode. You can also start playback by pressing the desired DISC SELECT button (the disc number button) if the disc is loaded. Note ALBM or ALBM SHUF appears even if you have selected a non-MP3 disc or MP3 disc with no albums. In this case, Album Play or Album Shuffle Play performs the same operation as 1DISC Play or 1DISC SHUF Play, respectively. Other operations *1There may be some disturbance in the video image.*2Except for MP3 audio tracks*3DVD and VIDEO CD only*4SLOW2 T/SLOW2 t playback speed is slower than SLOW1 T/SLOW1 t. Slow-motion reverse play for DVD only. To Do this Stop play Press x. The playback stops at the point x is pressed (Resume Play). Press x again to cancel the Resume Play (page 18). Pause Press X *1. Press X or nN again to resume play. Select a track or chapterPress PREV/. or NEXT/> repeatedly (or turn the MULTI JOG dial on the unit to select a track or chapter). Select an album of MP3Press ALBUM – or + (or ALBUM PLAY LIST – or + on the unit) repeatedly after step 2 (page 16). Locate a point quickly in fast forward or fast reverse (Lock Search *2)Press TUNING –/m or TUNING +/M (or press and hold ./m or M/> on the unit) during play. For DVD or VIDEO CD, each time you press the button, searching speed changes as follows: 1 (slow) y 2 (faster than 1) For CD, searching speed does not change (1 (slow) play). To return to Normal Play, press nN. Watch frame by frame (Slow-motion Play) *1*3 During play, press SLOW t or T. Each time you press the button, the playback speed changes as follows: Playback direction (DVD, VCD only) SLOW2 T *4 y SLOW1 T *4 Opposite direction (DVD only) SLOW2 t *4 y SLOW1 t *4 To return to Normal Play, press nN . Select a disc in Stop modePress DISC SKIP (or DISC SELECT (the desired disc number) button on the unit). Switch to DVD function from another sourcePress the DISC SELECT button that is loaded. continued
Page 39
40 GB You can preset up to 32 stations. You can then tune in any of those stations simply by selecting the corresponding preset number. Automatic tuning preset You can automatically tune in all of the stations that can be received in your area and then store the radio frequency of the desired stations. 1 Press TUNER/BAND repeatedly to select FM or AM. 2 Press and hold TUNING –/m or TUNING +/M (or press and hold ./ m or M/> on the unit) until the frequency indication starts to change, then release it. The frequency changes as the system scans for a station. Scanning stops automatically when a station is tuned in. At that time, TUNED and (for a FM stereo program) appear. If TUNED does not appear and the scanning does not stop. Set the frequency of the desired radio station as described in steps 1 through 3 of Manual tuning preset. 3 Press ENTER or X. A preset number appears. 4 Repeat steps 1 through 3 to store other stations. Manual tuning preset You can manually tune in and store the radio frequency of the desired stations. 1 Press TUNER/BAND repeatedly to select FM or AM. 2 Press TUNING –/m or TUNING +/M repeatedly to tune in the desired station. 3 Press ENTER or X. A preset number appears. 4 Repeat steps 1 through 3 to store other stations. Other Operation To cancel a preset station 1Tune in the preset station you want to cancel, then press CLEAR or x. 2Within 6 seconds, press ENTER. Tips On the unit, press x. Within 6 seconds, press X or ENTER. Preset station numbers are automatically sorted when a preset station is canceled. Tuner Presetting radio stations To Do this Tune in a station with a weak signalFollow the procedure described in Manual tuning preset. Preset number
Page 58
Timer 59 GB Other operations Notes You cannot activate the Daily Timer and Timer Recording at the same time. If you use the Daily Timer and the Sleep Timer at the same time, the Sleep Timer has priority. If the system is on at the preset time, the Daily Timer will not be activated. You cannot use the optional component connected to LINE IN or MD (AUX) jacks as the sound source for Daily Timer. Tip The system turns on 15 seconds before the preset time. You can record a radio station from a specified time. To set the timer record, make sure you have set the clock (see Setting the clock on page 13). 1 Tune in the radio station (see Listening to the radio on page 41). 2 Press CLOCK/TIMER SET. DAILY appears. 3 Press . or > repeatedly to select REC, then press ENTER. ON appears. Then the hour indication flashes. 4 Set the time to start recording. Press .or > repeatedly to set the hour, then press ENTER. The minute indication flashes. Press .or > repeatedly to set the minute, then press ENTER. 5 Set the time to stop recording following the same procedure as step 4. The start time, the stop time, and TUNER appear in turn, before the original display returns. 6 Load a recordable tape into the deck. 7 Press [/1 to turn off the system. Other operations Notes You cannot activate the Daily Timer and Timer Recording at the same time. If you use the Timer Recording, and the Sleep Timer at the same time, the Sleep Timer has priority. To Do this Check the setting Press CLOCK/TIMER SELECT repeatedly until DAILY appears. Change the setting Start over from step 1. Cancel the timer Press CLOCK/TIMER SELECT repeatedly until OFF appears. Timer Recording radio programs To Do this Check the setting Press CLOCK/TIMER SELECT repeatedly until REC appears. Change the setting Start over from step 1. Cancel the timer Press CLOCK/TIMER SELECT repeatedly until OFF appears. continued
Page 75
76 GB On operating voltage Before operating the system, check that the operating voltage of your system is identical with the voltage of your local power supply. On safety The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off. Unplug the system from the wall outlet (mains) if it is not to be used for an extended period of time. To disconnect the power cord (mains lead), pull it out by the plug. Never pull the cord itself. Should any solid object or liquid fall into the system, unplug the system and have it checked by qualified personnel before operating it any further. AC power cord must be changed only at the qualified service shop. On placement Do not place the system in an inclined position. Do not place the system in locations where it is; – Extremely hot or cold – Dusty or dirty – Very humid – Subject to vibrations – Subject to direct sunlight. Use caution when placing the unit or speakers on surfaces that have been specially treated (with wax, oil, polish, etc.) as staining or discoloration of the surface may result. On heat buildup Although the system heats up during operation, this is not a malfunction. Place the system in a location with adequate ventilation to prevent heat buildup in the system. If you continuously use this system at a high volume, the cabinet temperature of the top, side and bottom rises considerably. To avoid burning yourself, do not touch the cabinet. To prevent a malfunction, do not cover the ventilation hole for the cooling fan. In case color irregularity is observed on a nearby TV screen With the magnetically shielded type of speaker system, the speakers can be installed near a TV set. However, color irregularity may still be observed on the TV screen depending on your TV set type. If color irregularity is observed… Turn off the TV set once, then turn it on after 15 to 30 minutes. If color irregularity is observed again… Place the speakers farther away from the TV set. On operation If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the CD player. Should this occur, the system will not operate properly. Remove the disc and leave the system turned on for about an hour until the moisture evaporates. When you move the system, take out any disc. If you have any questions or problems concerning your system, please consult your nearest Aiwa dealer. Additional Information Precautions IMPORTANT NOTICE Caution: This system is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave a still video image or on-screen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen. Projection televisions are especially susceptible to this.
Page 83
84 GB Main unit 1 Display window (14) 2 VOLUME control (58) 3 PLAY MODE (16, 23) 4 DISPLAY *1 (43, 61, 62) 4 RDS *1 (42) 5 MODE (14, 54, 58, 61) 6 TUNER PRESET CLEAR 7 Disc slot (15) 8 MULTI JOG (14, 45, 46, 56, 58) 9 ENTER (13, 14, 19, 22, 23, 25, 30, 32, 40, 54, 58, 59) q; PHONES jack qa MIC LEVEL (56) qs MIC jack (56) qd SELECT DIRECTION nN (17, 20, 20) qf TUNING – ./m (40, 42) qf TUNING + M/> (40, 42) qg DISC SELECT (15, 23) qh LINE IN (67) qj USB jack *2 (48, 67) qk Z EJECT/DISC CHANGE (17) ql ALBUM/PLAY LIST +/– (17, 21, 23) w; (Remote sensor) wa CD SYNC (46) wa REC PAUSE/START (46, 56) ws TUNER PRESET SET wd i-Bass (54) wf BASS (54) wg SOUND FIELD (55) wh TUNER/BAND (40, 41) wj TREBLE/MIDDLE (54) wk FUNCTION (13, 23, 45, 46, 56, 68) wl [/1 (power) (10, 13, 41, 58, 61, 68) [ /1 (power) wl (10, 13, 41, 58, 61, 68) X (pause) ws (10, 17, 45) Z (eject) qk (17) x (stop) 6 (17, 45, 46, 56) M /> (fast forward/ TUNING +) qf (17, 21, 40, 45) nN SELECT DIRECTION qd (17, 20) . /m (rewind/TUNING –) qf (17, 40, 45) (Remote sensor) w; *1BMZ-K7D/K5D (except Euro/ UK models): DISPLAY BMZ-K7D (Euro/UK models): RDS function *2BMZ-K7D only List of button locations and reference pages How to use this page Use this page to find the location of buttons and other parts of the system that are mentioned in the text. Illustration num ber Reference page rr wg SOUND FIELD (55) R Name of button/part BUTTON DESCRIPTIONS OUN F ELD TUNER PRESET CL AR TUN NG ISC SE ECT SELECTD REC ION SET REC PAUSE/ START D SC C ANGEZ E ECT TREBLE / M DDLE BASS VOL ME PLAY MODE D S LAYMODE ENTER PHONES MIC LEVEL M CM NXAM LINE N AUD O L R V DEO F NCT ON TUN / AND 3 1 2 45
