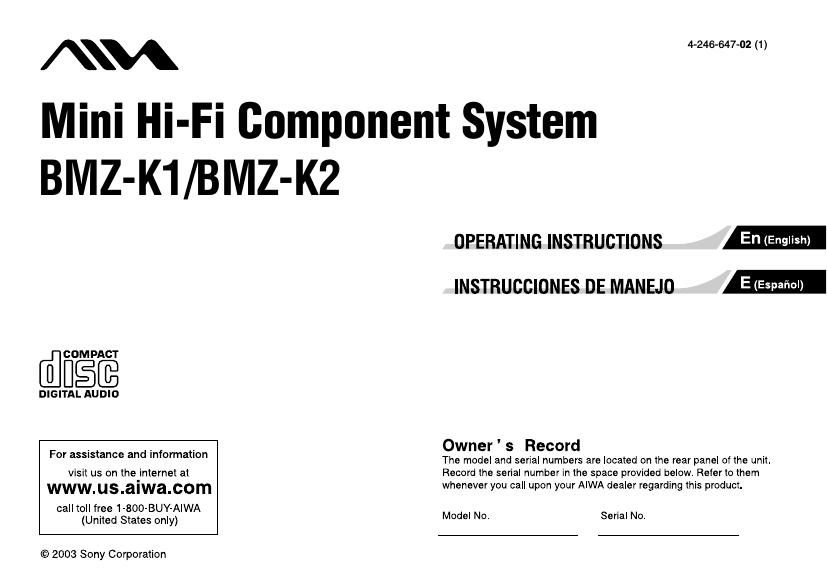

Aiwa BM ZK1 Owners Manual
This is the 46 pages manual for Aiwa BM ZK1 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Aiwa BM ZK1 Owners Manual (Ocr-read)
Page 1
2 En WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. Do not install the appliance in a confined space, such as a bookcase or built-in cabinet. To prevent fire, do not cover the ventilation of the apparatus with newspapers, table-cloths, curtains, etc. And don't place lighted candles on the apparatus. To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus. CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. PRECAUTIONS WARNINGThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. CAUTION You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. Note to CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. On operating voltage Before operating the system, check that the operating voltage of your system is identical with the voltage of your local power supply. CAUTION The use of optical instruments with this product will increase eye hazard. If you have any questions about this product, you may call; sony customer Information Center 1-800-488-7669. This Number below is for the FCC related matters only. Regulatory Information Declaration of Conformity Trade name: SONY Model No.: BMZ-K1/BMZ-K2 Responsible Party: Sony Electronics Inc. Address: 680 Kinderkamack Road, Oradell, NJ, 07649 USA Telephone No.: 201-930-6972 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 2
3 En TABLE OF CONTENTS PREPARATIONS ................................... 4 PARTS AND CONTROLS ......................... 5 ADJUSTMENTS BEFORE OPERATION .......... 8 SOUND ADJUSTMENTS .......................... 9 CD OPERATIONS ................................ 10 MP3-CD OPERATIONS ......................... 13 TUNER OPERATIONS ........................... 15 TIMER OPERATIONS ........................... 16 CONNECTING A PERSONAL COMPUTER .... 18 REFERENCE ..................................... 21 Notes on discs -Playable discs on this unit are Audio CDs (CDs), CD-R/ CD-RW with audio data (CD-R/RW) and CD-R/CD-RW with MP3 files (MP3-CDs). -Discs recorded on CD-R/RW drives may not be played back because of scratches, dirt., recording condition or the drive's characteristics. -CD-R/RW discs which are not finalized at the end of recording cannot be played back. -Do not attach adhesive label, etc. to either side of a CD-R/ RW disc, as doing so may cause malfunction. -Do not load an unrecorded CD-R/RW disc. The disc may be damaged. - Do not insert 8-cm (3-inch) discs. Those discs cannot be played on this unit. Moreover, if you insert the discs of that size forcibly, you may not be able to eject it. -Discs with non-standard shapes (e.g., heart, square, star) cannot be played on this unit. Attempting to do so may damage the unit. Do not use such discs. -DVD, SACD, CD-ROM and VCD cannot be played on this unit. Music discs encoded with copyright protection technologies This product is designed to playback discs that conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protection technologies are marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product. If you have any questions or problems concerning your stereo system, please consult your nearest Aiwa dealer. On safety -The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off. - Unplug the system from the wall outlet (mains) if it is not to be used for an extended period of time. To disconnect the cord (mains lead), pull it out by the plug. Never pull the cord itself. -Should any solid object or liquid fall into the component, unplug the stereo system and have the component checked by qualified personnel before operating it any further. -The AC power cord must be changed only at a qualified service shop. On placement -Place the unit in a location with adequate ventilation to prevent heat build-up the unit. -Do not place the unit in an inclined position. -Do not place the unit in locations where it is; -Extremely hot or cold -Dusty or dirty -Very humid -Vibrating -Subject to direct sunlight. On heat buildup -Although the unit heats up during operation, this is not malfunction. -Place the unit in a location with adequate ventilation to prevent heat build-up in the unit. If you continuously use this unit at a large volume, the cabinet temperature of the top, side and bottom rises considerable. To avoid burning yourself, do not touch the cabinet. On operation -If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the CD player. Should this occur, the system will not operate properly. Remove the CD and leave the system turned on for about an hour until the moisture evaporates. -When you move the system, take out any discs.
Page 14
15 En TUNER OPERATIONS Manual tuning 1 Press BAND (hold down SHIFT and press BAND on the remote) to select a band. The unit switches to the tuner from any other function and alternates between FM and AM. 2 Press f or g repeatedly to tune in a station."TUNED" is displayed when a station is tuned in. "1" is displayed for FM stereo reception. To search for a station automatically (Auto search) Hold down f or g. The unit searches for a station and stops at reception. To stop the search manually, press f or g. -Auto search may not stop at stations with weak signals. Preset tuning Preset up to 32 of your favourite stations and tune in directly. Presetting stations 1 Tune in the desired station. 2 Press ENTER (or a) to store the station.The preset number, beginning from "1" appears in the display. 3 Repeat steps 1 and 2 to preset other stations.The next station will not be stored if a total of 32 preset stations have already been stored. ("FULL" is displayed.) -If power is interrupted for more than approximately 12 hours, all settings stored in memory after purchase need to be reset. Tuning in pr eset stations 1 Select the band. 2 Turn MULTI JOG (or press c repeatedly).On the remote, press r or t repeatedly. With each press, the station with the succeeding or preceding preset number is tuned in. You can tune in the desired preset station directly by pressing the numbered buttons on the remote. -To select preset number 7, press 7. -To select preset number 12, press +10 and 2. To clear a preset station 1Tune in the station by preset tuning. 2Press CLEAR, then press ENTER on the remote within 6 seconds. On the main unit, press s then press a within 6 seconds. Preset station numbers in the band which are higher than the cleared number decrease by one. Adjustments To switch to monaural FM reception Hold down SHIFT and press TUNER MODE on the remote so that "MONO" is displayed. To cancel, repeat the above so that "STEREO" is displayed. Tip:When FM stereo reception is poor, switching to monaural reduces noise. To switch the AM tuning interval The default setting of the AM tuning interval is 10 kHz/step. If you use this unit in an area where the frequency allocation system is 9 kHz/step, change the tuning interval. Hold down TUNER/BAND and press POWER on the main unit. Tip:When the AM tuning interval is changed, all preset stations are cleared. BAND POWER 1-9,0/10,+10 r SHIFTs ENTER BAND TUNER MODE a,s,c f,gt f,g ENTER MULTI JOG
Page 24
25 E ÍNDICE PREPARACIONES ............................... 26 PARTES Y CONTROLES ........................ 27 AJUSTES ANTES DEL FUNCIONAMIENTO ... 30 AJUSTES DE SONIDO .......................... 31 FUNCIONAMIENTO DEL DISCO COMPACTO ...................................... 32 FUNCIONAMIENTO DE DISCOS COMPACTOS MP3 .............................. 35 FUNCIONAMIENTO DEL SINTONIZADOR .... 37 FUNCIONAMIENTO DEL TEMPORIZADOR ... 38 CONEXIÓN DE UNA COMPUTADORA PERSONAL ...................................... 40 REFERENCIA .................................... 43 Seguridad-La unidad no estará desconectada de la fuente eléctrica de CA (red eléctrica) mientras esté conectada a la toma de la pared, incluso si se ha apagado la unidad. -Desenchufe el sistema de la toma de la pared (red eléctrica) si no va a utilizarse durante un periodo de tiempo prolongado. Para desconectar el cable (cable de red) tire de éste por el enchufe. Nuca tire del propio cable. -En caso de que cayera un objeto sólido o líquido en el componente, desenchufe el sistema estéreo y lleve a chequear el componente a personal cualificado antes de ponerlo en funcionamiento de nuevo. -El cable de alimentación de CA deberá cambiarse sólo en un establecimiento cualificado. Ubicación de la unidad-Coloque la unidad en un lugar con ventilación adecuada para evitar acumulación de calor en la unidad. -No coloque la unidad en posición inclinada. -No coloque la unidad en lugares donde haya: -mucho calor o frío -polvo o suciedad -mucha humedad -vibraciones -o donde se encuentre bajo luz solar directa. Sobrecalentamiento-El sobrecalentamiento de la unidad mientras está funcionando no se considera un funcionamiento defectuoso. -Coloque la unidad en un lugar con ventilación adecuada para evitar un sobrecalentamiento de la unidad. Si utiliza la unidad a un volumen alto de manera continuada, la temperatura de la parte superior, lateral e inferior de la carcasa ascenderá considerablemente. Para evitar quemarse no toque la carcasa. Funcionamiento-Si traslada directamente el sistema de un lugar frío a uno cálido, o si se coloca en una habitación muy húmeda, la humedad podrá condensarse en las lentes en el interior del reproductor de discos compactos. En caso de que ocurriera,el sistema no funcionará adecuadamente. Retire el disco compacto y deje el sistema encendido durante una hora hasta que se evapore la humedad. -Cuando mueva el sistema de lugar extraiga los discos. Notas sobre los discos-Esta unidad reproduce discos compactos de audio (CDs), discos CD-R/CD-RW con datos de audio (CD-R/RW) y discos CD-R/CD-RW con archivos MP3 (discos compactos de MP3). -Puede que los discos grabados en unidades CD-R/RW no se reproduzcan debido a arañazos, suciedad, estado de la grabación o las características de la unidad. -Los discos CD-R/RW que no estén finalizados al terminar la grabación no pueden reproducirse. -No pegue etiquetas adhesivas, etc. a ninguna cara del disco CD-R/RW, ya que ello podría ocasionar funcionamientos defectuosos. -No introduzca un disco CD-R/RW virgen. El disco podría estar dañado. - No inser te discos de 8 cm. Tales discos no pueden reproducirse en esta unidad. Además, si inserta un disco de este tamaño forzadamente, es posible que no pueda extraerlo. -Aquellos discos con formas no estándar (por ejemplo, corazón, cuadrado, estrella) no pueden reproducirse en esta unidad. Si intenta hacerlo podría dañar la unidad. No utilice dichos discos. -DVD, SACD, CD-ROM y VCD no pueden reproducirse en esta unidad. Discos de música codificados mediante tecnologías de protección de los derechos de autor Este producto se ha diseñado para reproducir discos que cumplen con el estándar Compact Disc (CD). Recientemente, algunas compañías discográficas comercializan discos de música codificados mediante tecnologías de protección de derechos de autor. Tenga en cuenta que, entre estos discos, algunos no cumplen con el estándar CD, por lo que no podrán reproducirse mediante este producto. En caso de dudas o problemas sobre sus sistema estéreo, póngase en contacto con su distribuidor Aiwa más cercano.
