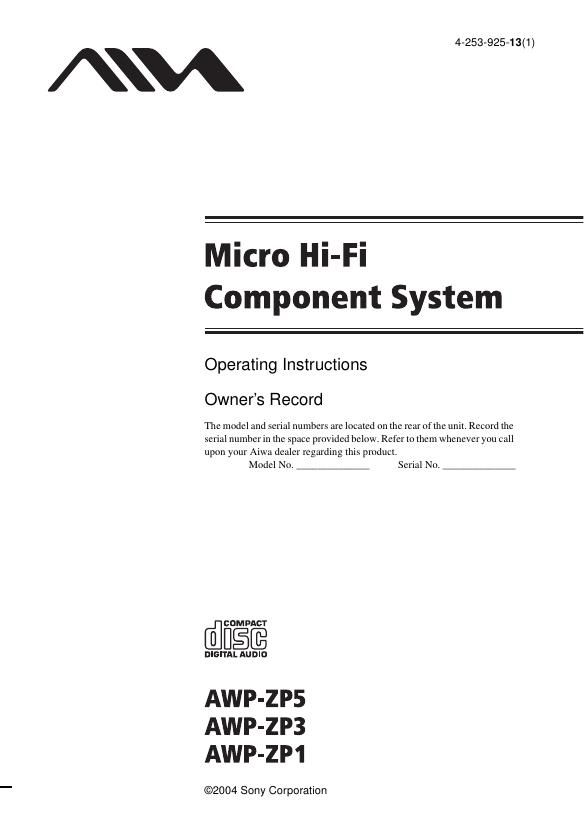

Aiwa AW PZP3 Owners Manual

Page 1

2GB To prevent fire or shock hazard, do not expose the unit to rain or moisture. To prevent fire, do not cover the ventilation of the apparatus with news papers, table-cloths, curtains, etc. And dont place lighted candles on the apparatus. To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus. This appliance is classified as a CLASS 1 LASER product. This marking is located on the rear exterior. Dont throw away the battery with general house waste, dispose of it correctly as chemical waste. NOTICE FOR THE CUSTOMERS IN THE U.S.A. This symbol is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION The use of optical instruments with this product will increase eye hazard. WARNING This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -“ Reorient or relocate the receiving antenna. -“ Increase the separation between the equipment and receiver. -“ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -“ Consult the dealer or an experienced radio/TV technician for help. Note to CATV system installer: This reminder is provided to call the CATV system installers attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. CAUTION You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. WARNING Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

Page 2

3GB NOTICE FOR THE CUSTOMERS IN THE U.S.A. If you have any questions about this product, you may call; Aiwa Customer Information Service Center 1-800-289-2492 or http://www.us.aiwa.com/ The Number below is for the FCC related matters only. Regulatory Information NOTICE FOR THE CUSTOMERS IN CANADA CAUTION The use of optical instruments with this product will increase eye hazard. CAUTION TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. Except for European model ENERGY STAR ® is a U.S. registered mark. As an E NERGY S TAR ® partner, Sony Corporation has determined that this product meets the E NERGY STAR ® guidelines for energy efficiency.  Microsoft, Windows and Windows NT are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.  IBM and PC/AT are registered trademarks of International Business Machines Corporation.  Macintosh is a trademark of Apple Computer, Inc. in the United States and/or other countries.  Pentium is a trademark or registered trademark of Intel Corporation.  All other trademarks and registered trademarks are trademarks or registered trademarks of their respective holders.  -„¢ and ® marks are omitted in this manual. Declaration of Conformity Trade name: AIWA Model No.: CX-LZP5 Responsible Party: Sony Electronics Inc. Address: 16450 W. Bernardo Dr, San Diego, CA 92127 U.S.A. Telephone No.: 858-942-2230 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Page 20

Display 21GB Checking the total playing time and titles (CD/MP3) Press DISPLAY in stop mode. Each time you press the button, the display changes cyclically as follows: x When a CD/MP3 is in Normal Play mode TOC display 1) or total album number of the disc 2) or total track number of the current album3) t Volume label 4) t Album name 4) t Clock display 1)TOC = Table of Contents; displays total number of tracks on the disc, and total playing time of the disc 2)For discs with MP3 audio tracks in Normal play or SHUF mode 3)For discs with MP3 audio tracks in ALBM or ALBM SHUF mode 4)For discs with MP3 audio tracks, album titles or volume label may not be displayed depending on the play mode. x When a CD/MP3 is in Program Play mode The last track number of the program and the total playing time t Total track number of the program t Volume label* t Clock display * For discs with MP3 audio tracks Checking the station name (TUNER) Press DISPLAY while listening to the radio. Each time you press the button, the display changes cyclically as follows: Station name 1) t Preset number 2) and frequency t Clock display 1)European model only2)Preset number is displayed only if you preset radio stations (page 13). Notes  The total playing time is not displayed for a disc with MP3 audio tracks.  ID3 tag applies to version 1 and version 2.  If the MP3 audio track you play back has an ID3 tag, the ID3 tag information is displayed as a track title.  In the following cases, elapsed playing time and remaining time of the track may not be displayed accurately. -“ when an MP3 audio track of VBR (Variable Bit Rate) is played. -“ when fast forward or fast reverse is performed.

Page 24

Optional Personal Computer (except for AWP-ZP1) 25GB For Windows 2000 Professional or Windows XP Professional/Home Edition To install the USB driver 1Connect the system to the computer with the supplied USB cable (see page 22). 2Start up the computer. 3Press ?/1 to turn on the system. 4Press PC (or FUNCTION repeatedly) to switch the function to PC. The computer automatically detects the system and begins the device (OS standard driver) installation. Installation finishes automatically. Notes  The OS CD-ROM may be required depending on your computer. In this case, follow the instructions and set the CD-ROM in the drive.  Do not disconnect or connect the USB cable during detection. Tip To not install the driver, follow the instructions appearing on the monitor. To verify the status of the installed devices Be sure to check the status of the installed devices after you have installed their drivers. 1Open the [Control Panel]. In the Start menu, point to [Settings] and click [Control Panel]. (For Windows XP) In the Start menu, click [Control Panel], and then click [Switch to Classic View] on the left panel of the window. 2Double-click the [System] icon. The System Properties dialog box appears. 3Click the [Hardware] tab. 4Click the [Device Manager] button. Make sure that devices by type is selected in the View menu. 5Make sure that the following items are listed in the Device Manager dialog box.  USB Audio Device under Sound, video and game controllers  USB Composite Device under Universal Serial Bus controllers The illustration above shows an example Windows XP Professional screen. Notes  Other items in the Device Manager list may differ depending on your computer environment.  If the devices are not recognized, disconnect and reconnect the USB cable, and try to automatically install the drive drivers again. If the devices still are not recognized, reboot the computer. continued

Page 27

28GB To enhance your system, you can connect optional components. Refer to the operating instructions provided with each component. AWP-ZP5 is used for illustration purpose. A MD jacks Use audio cords (not supplied) to connect an optional analog component (MD deck or VCR, etc.) to these jacks. You can then listen to the sound from the component. B USB port (except for AWP-ZP1) Use the supplied USB cable to connect a personal computer (see Optional Personal Computer (except for AWP-ZP1) on page 22). C USB hub ports (AWP-ZP5 only) Connect an optional USB component (USB memory key, etc.) to these USB hub ports (see Connecting an optional USB component on page 27). Optional Components Hooking up optional components A personal computer From the audio output jacks of an optional analog componentOptional analog component Optional USB component

Page 39

Sony Corporation Printed in China
