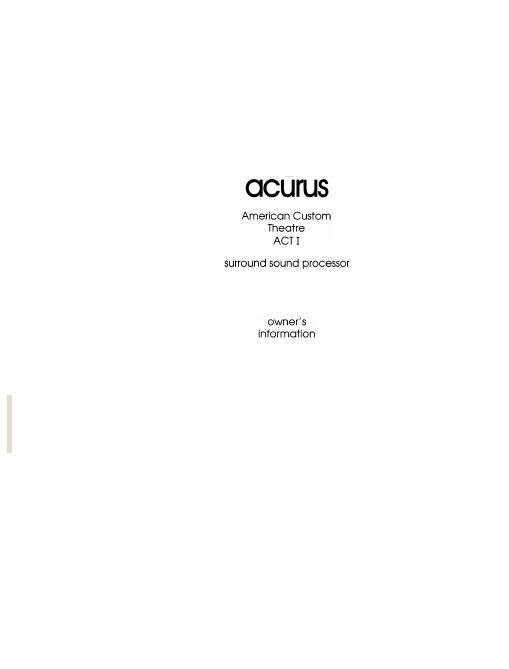

Acurus act 1 owners manual

Page 2

ese read this manual. Upon completion you will understand the connections and operation of your ACT I processor. CONNECTIONS r~~~ VIDEO INPUTS VIDEO OUTPUTS AC POWER I @ S-Video Input Composite Video Inputs G) Laserdisc @ VCRl @ VCR2 Connect video sources directly as labeled. ~: The above labeling is for purposes of convenience. Any composite video source, such as Satellite System, Laserdisc and VCR can be connected to any composite Video Input. ~: Connect either @ or CD DO NOT USE BOTH. @ S-Video Source Output Composite Video Outputs @ Video Source Output Connect the Video Source Outputs to the video inputs of your television or monitor. Note: Some televisions will not have an S-Video Input. @ Video Record Output Connect the Video Record Output to the Video Input of the VCR that will be used for recording. ~: Video Record Output may also be used to transmit the video signal to an additional television. This allows for viewing two different sources at the same time. I! When connecting or disconnecting the inputs and outputs of any component be sure AC power is turned off. . RPC- 120 Input Connect to RPC output. Remote power On/Off capability for four other components is available with the optional RPC- 1.20 Filtered AC Power Switcher. . AC Power Connection Connect to supplied power cord.~ AUDIO INPUTS AUDIO OUTPUTS 0 Laserdisc Audio Inputs e VCR 1 Audio Inputs e VCR 2 Audio Inputs Connect audio sources directly as labeled. ~: If an audio D/A convertor or other non-standard AN source is used, connect to LD Input only 0 Audio Source Outputs Connect to the inputs of the amplifier channels powering left and right front speakers. Be sure that left and right channel outputs are connected to their corresponding amp inputs. 0 Center Channel Output Connect to the inputs of the amplifier channel powering the center speaker. f) Rear Surround Outputs e Audio Record Outputs Connect to the audio inputs of the VCR that will be used for recording. ~: Audio Record Outputs may also be used to transmit the audio signal to an additional television. . Subwoofer Output (with Crossover) If you are using non-powered sub- woofers without a built in crossover, connect to the inputs of the amplifier channel powering the subwoofer. e Mono Subwoofer Outputs (without Crossover) If you are using subwoofers with a built in crossover, connect to the inputs of the amplifier channels powering the subwoofers. ~: If only one subwoofer is used, connect either output to the amplifier powering the subwoofer. I Connect to the inputs of the amplifier channels powering the rear surround speakers.
