Acurus a 100 x 3 owners manual

Page 2

Pease read this manual. Upon completion you will understand the set-up
and operation of your iOOX3 Power Amplifier.

1. Although all Acurus components
are burnt-in prior to delivery. if has
been our experience that the ampli-
fiers continue to improve during the
first 250 hours of use.

2. Although all Acurus amplifiers
contain comprehensive protection
circuitry. they still may be damaged
due to misuse. Therefore please use
the following basic safety precautions:

A) Allow adequate ventilation on all
sides of the Acurus amplitiers. Never
place directly on carpeted liner.

3) NEVER attach or remove speaker
cables or input cables with the
amplifier an.

3. Remove power cord from wall
outlet when changing fuses.

4. Do not use an extension cord -
connect the amplifier directly to your
A.C. wall outlet. The Acurus is capable
of delivering tremendous power to
your speakers, but not if its ability to
receive A.C. current is constricted in
any way. If you must use an extension
cord 14 gauge wiring ls minimum.

5. Be very careful with the placement
of all your systems wiring. Many times
placement of wiring will alter the
amount of background noise or hum
that is audible.

CONNECTIONS

INPUT-Connect your preamplifiers
outputs to the appropriate input jack
on the rear panel. Before inserting or
removing any connectors be certain
both the preamp and power amp
are OFF.

OUTPUT-Connect the amplifier
outputs to the appropriate inputs on
your speakers.

AMPLIFIER PROTECTION

Your lOOX3 is protected by an AC
power fuse located on the back
panel, and six internal rail fuses.

if you experience any problems,
please contact your local dealer for
service. In most cases, the problem
may be as simple as replacement
at a fuse.

SPECIFICATIONS

Ratea Power

too watts per channel continuous,
all channels driven into 8 OHMS

20 Hz to 20000 Hz at no more than
0.06% THD

150 watts per channel continuous,
each channel driven into 4 OHMS
20 Hz to 20,000 Hz

input impedance
20K ohms

Input Sensitivity
1.1 volts tor tuli output

Signal to Noise Ratio:
0d! AWeighted

For any additional information on
your Acurus iOOX3 Power Amplifier.
please contact your local dealer
or Mondlal Designs Ltd.

Acurus Audio is a division of
Mondial Designs Ltd.
Manufactured in the U.S.A.

Caution: To prevent electric shock,
do not remove cover, no user~
serviceable parts inside.

Refer servicing to qualified personnel.

Warning: To prevent fire or snack
hazard. do not expose this appliance
to rain or moisture.

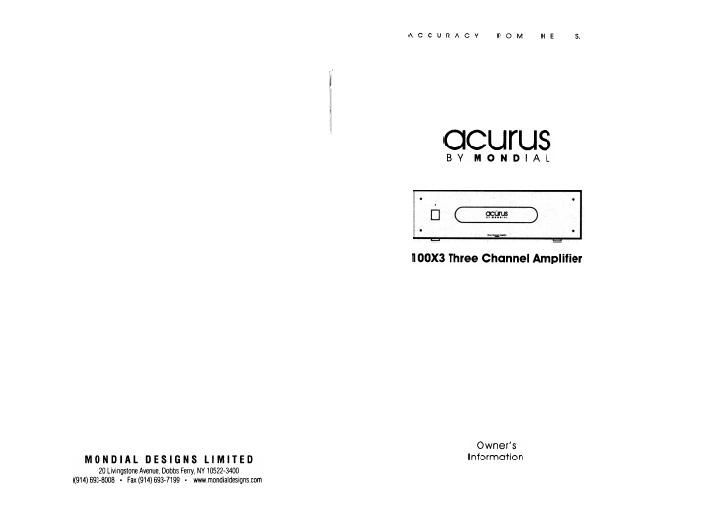

Owners
information
