Accuphase M 60 Service Manual
This is the 18 pages manual for Accuphase M 60 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Accuphase M 60 Service Manual (Ocr-read)
Page 1
DQCUPIIOSG

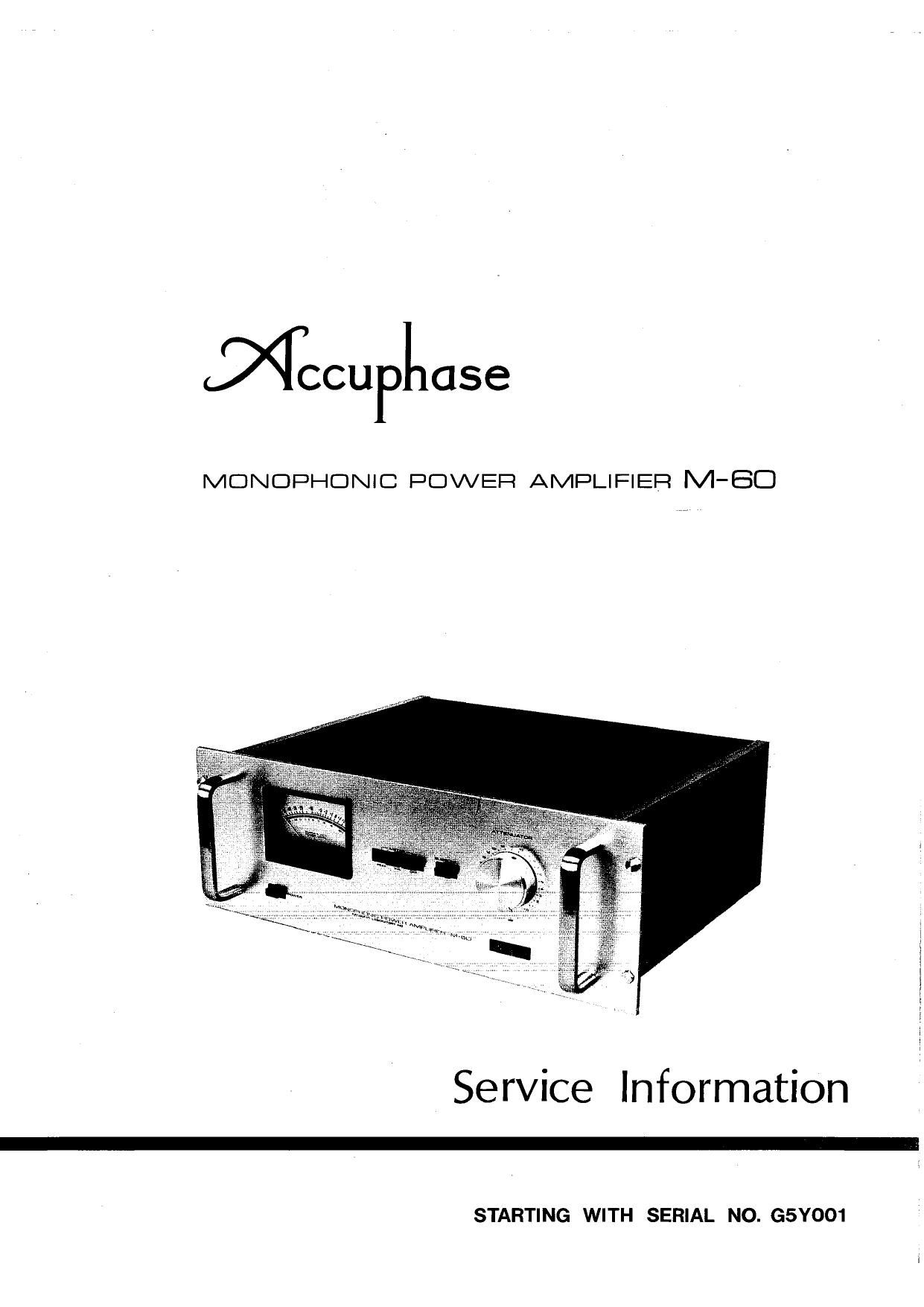

MONOPHONIC POWER AMPLIFIER M-BO
Service Information
STARTING WITH SERIAL NO. GSYOO1
Page 2
TABLE OF CONTENTS
BLOCK DIAGRAM ............................................. 1
EXTERNAL VIEW ............................................. 2
HOW TO REPLACE THE FOLLOWING PARTS ............. 2
INTERNAL VIEW .......................... ' ................... 3
EXPLODED VIEW ............................................ 4
MISCELLANEOUS ............................................. 5
MAIN DRIVE AMP. ASSEMBLY .............................. 6
PROTECTION CIRCUIT ASSEMBLY ......
METER CIRCUIT ASSEMBLY.,..: .......
FUSE CIRCUIT ASSEMBLY ..............
PHASE CORRECT CIRCUIT ASSEMBLY.
PROTECTION CIRCUIT DESCRIPTION.
CHECKING THE POWER SUPPLY ........................... 9
CIRCUIT DESCRIPTION.. .................................. 10
CIRCUIT ADJUSTMENT ..................................... 11
TRANSISTOR LEADS ....................................... 12
SCHEMATIC DIAGRAM ................................ 13, 14
SPECIFICATIONS ............................................ 15
