Sherwood rv 5050rds

Page 1

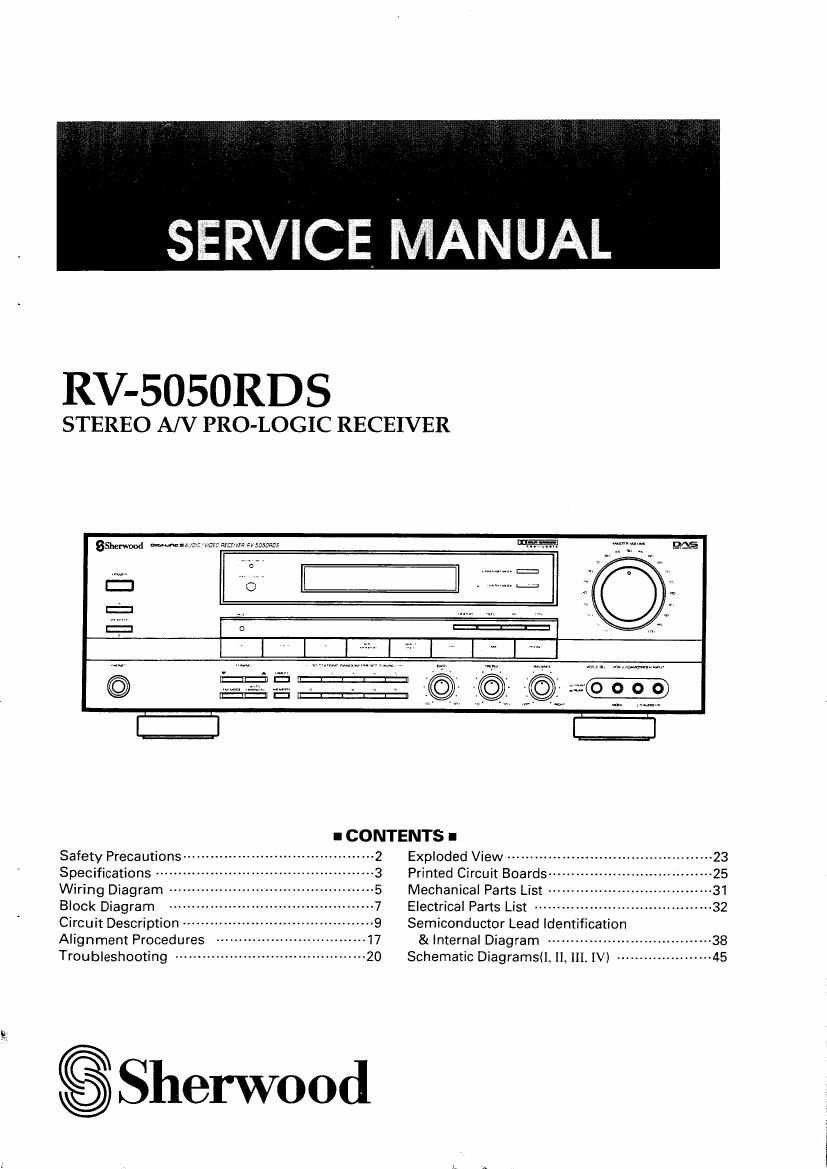

SERV CE

ANUAL

RV-SOSORDS

STEREO A/V PRO-LOGIC RECEIVER

95mm mm mass mm wjasoms

no.

0

I CONTENTS I

Safety precautions .......................................... 2
Specifications --------
Wiring Diagram --
Block Diagram

Circuit Description ----- ,.
Alignment Procedures 17
Troubleshooting ......................................... 20

S Sherwood

Exploded View ............................................ 23
Printed Circuit Boards ----------
Mechanicai Parts List »

Electrical Parts List -~-32
Semiconductor Lead Identification

& internal Diagram .................................... 38
Schematic Diagramsi! II, III. IV) 45

Page 2

SAFETY PRECAUTIONS

WARNING

Before servicing this unit, familiarize yourself with the following precautions:

1. Many electrical and mechanical parts in this exposed metal parts of the cabinet, such as

chassis have special safety characteristics that
often pass unnoticed and the protection
afforded by them cannot necessarily be
obtained by using replacement components

Replacement parts that have these special
safety characteristics are identified in this
manual and its supplements: electrical
components having such features are
identified by [A in the schematic diagram
and the parts list.

Before replacing any of these components,
read the parts list in this manual carefully. The
use of substitute replacement parts that do
not have the same safety characteristics as
specified in the parts list may create shock,
fire, or other hazards.

. Before returning the set to the customer,
always do an AC leakage current check on the

terminals, screw heads, and metal overlays,
to be sure the set is safe to operate danger of
electrical shock. Plug the AC line cord directly
into a 230 V AC outlet.

(Do not use a line isolation transformer
during this check.) Be sure your AC voltmeter
has a sensitivity of 5000 9 per volt or greater.
Then connect a 1500 Q 10 watt resistor,
paralleled by a 0.15 uF 150 V AC capacitor,
between a known good earth ground (such as
a water pipe, or conduit) and the exposed
metalic is parts, one at a time. Measure the
AC voltage across the combination of a 1500
Q resistor and a 0.15 uF capacitor. Reverse the
AC plug at the AC outlet and repeat AC
voltage measurements for each exposed
metalic part. Voltage measured must not
exceed 0.75 V RMS. This corresponds to 0.2
mA AC. Any value exceeding this limit
constitutes a potential shock hazard and must
be corrected immediately.

At 5000 9 per volt or greater sensitivity,
the reading should not exceed 0.75 V.

Set

0 AC Voltmeter

AC Outlet

Good earth ground, such as
a water pipe or conduit.

0.15 uF, 150 V AC

Place the probe on each exposed metalic part.
