McIntosh MSE 1 Owners Manual

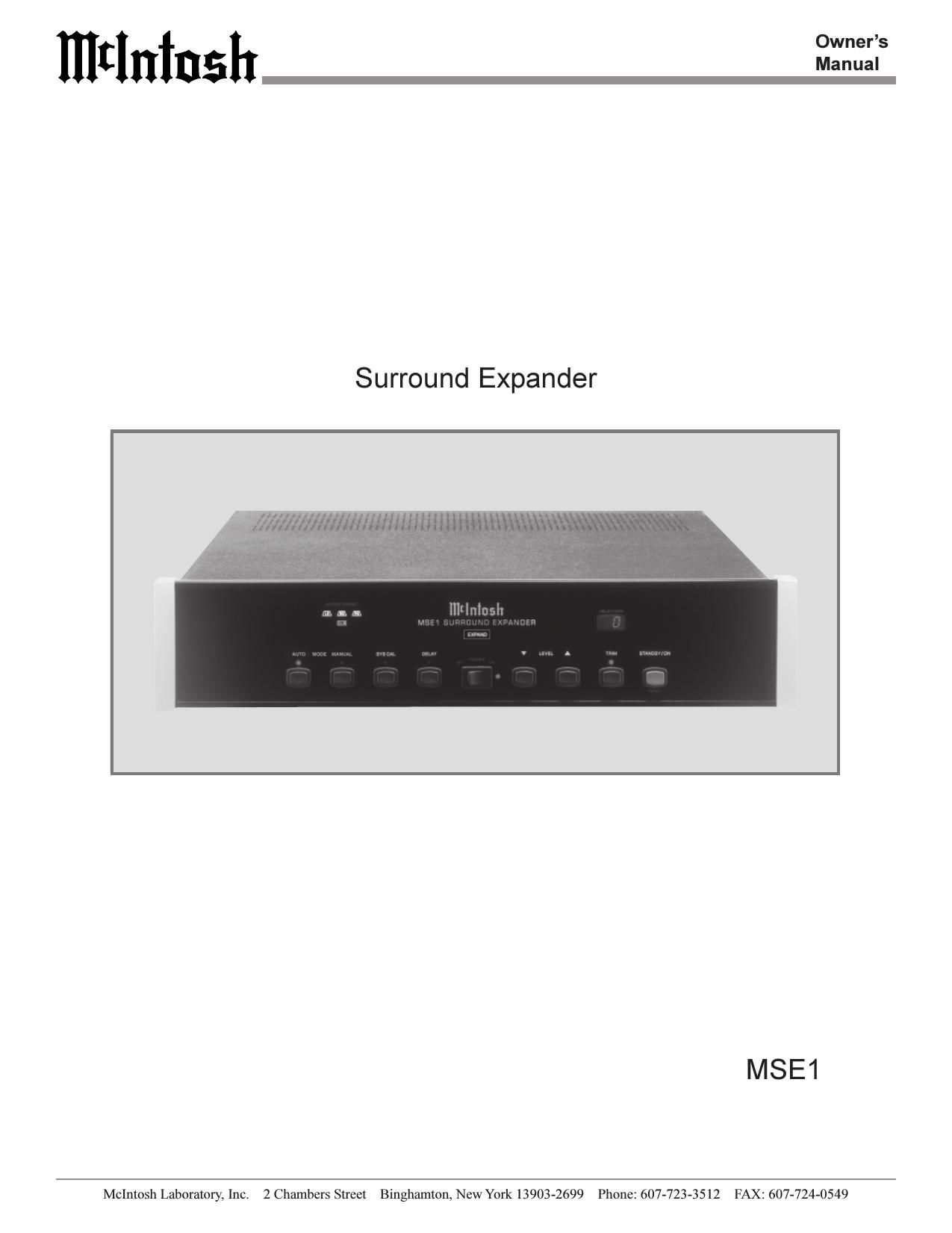

Page 1

mtlntngh 32:3:

Surround Expander

MSE1

McIntosh Laboratory, Inc. 2 Chambers Street Binghamlon, New York l3903»2699 Phone: 607-723-3512 FAX: 607-724-0549

Page 2

IIItInInsII

Thank You

Your decision to own this Mclntosh MSEI Surround Ex-
pander ranks you at the very top among discriminating mu-
sic listeners. You now have The Best. The Mclntosh
dedication to Quality, is assurance that you will receive
many years of musical enjoyment from this unit.

Please take a short time to read the information in this
manual. We want you to be as familiar as possible with all
the features and functions of your new McIntosh.

Please Take A Moment

The serial number, purchase date and Mclntosh dealer
name are important to you for possible insurance claim or
future service. The spaces below have been provided for
you to record that information:

Serial Number:
Purchase Date:
Dealer Name:

Technical Assistance

If at any time you have questions about your Mclntosh
product, contact your Mclntosh dealer who is familiar with
your Mclntosh equipment and any other brands that may
be part of your system. If you or your dealer wish addi-
tional help concerning a suspected problem, you can re-
ceive technical assistance for all Mclntosh products at:

McIntosh Laboratory, Inc.

2 Chambers Street
Binghamton, New York 13903
Phone: 607-723-3512

Fax: 607-723-3636

Customer Service

-
If it is determined that your Mclntosh product is in need of
repair, you can return it to your dealer. You can also return
it to the Mclntosh Laboratory Service Repair Department.
For assistance on factory repair return procedure, contact
the Mclntosh Repair Department at:

Mclntosh Laboratory, Inc.

2 Chambers Street
Binghamton, New York 13903
Phone: 607-723-3515

Fax: 607-723-1917

Copyright 2000 © by Mclntosh Laboratory, Inc.

Table of Contents

Thank You .......................................................................... 2
Please Take a Moment
Technical Assistance ......
Customer Service
Table of Contents
Safety Instructions ..
Introduction ............
Performance Features
Dimensions ....................
Installation ...............................................
Rear Panel Switches and Connections .
How to Connect with a MXI32 .....
How to Connect with a C39/MX130

and MSD4 or MAC3 ....................................................... 10
How to Connect with a MSD4 or MAC-3 ....................... 12
Front Panel Controls, Displays, Push-Buttons,

OOQQLII-b-JAUJNNNN

and Switch ........... 14
Speaker Settings .. .. 15
Surround Calibrations 16
How to Operate .............. 19
Specifications ......... 22
Packing Instmction . 23

General Notes

1. The following Connecting Cable is available from the
Mclntosh Parts Department:
Data and Power Control Cable Part No. 1 70-202
Six foot, shielded 2 conductor, with 1/8 inch stereo mini
phone plugs on each end
2. For additional connection information, refer to the owner Is
manual(s) for any component) connected to the MSEI
Surround Expander
