Ampeg svt csb0003

Page 1

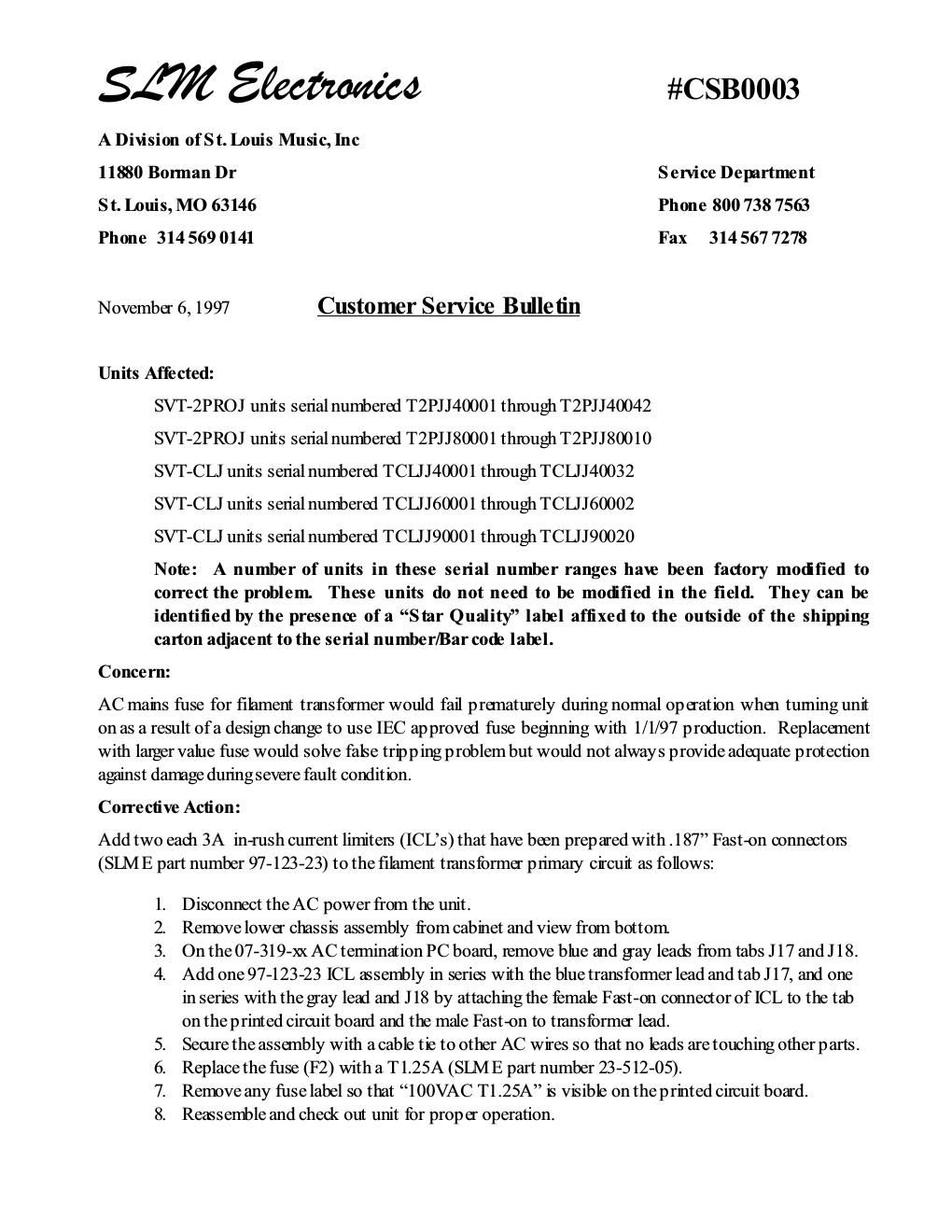

Note: For best op erat ion of ICLs do not rapidly t urn t he amp lifier off and on. T hese devices are self- heat ing and require a short t ime t o cool and ret urn t o t heir p rot ect ive, high res is t ance s t ate. 07-319-xx AC Te rmination board as viewe d from inside lowe r chassis Add one 97-123-23 ICL assembly in series with J17 and t he blue t ransformer lead and one in series with J18 and t he gray t ransformer lead.
