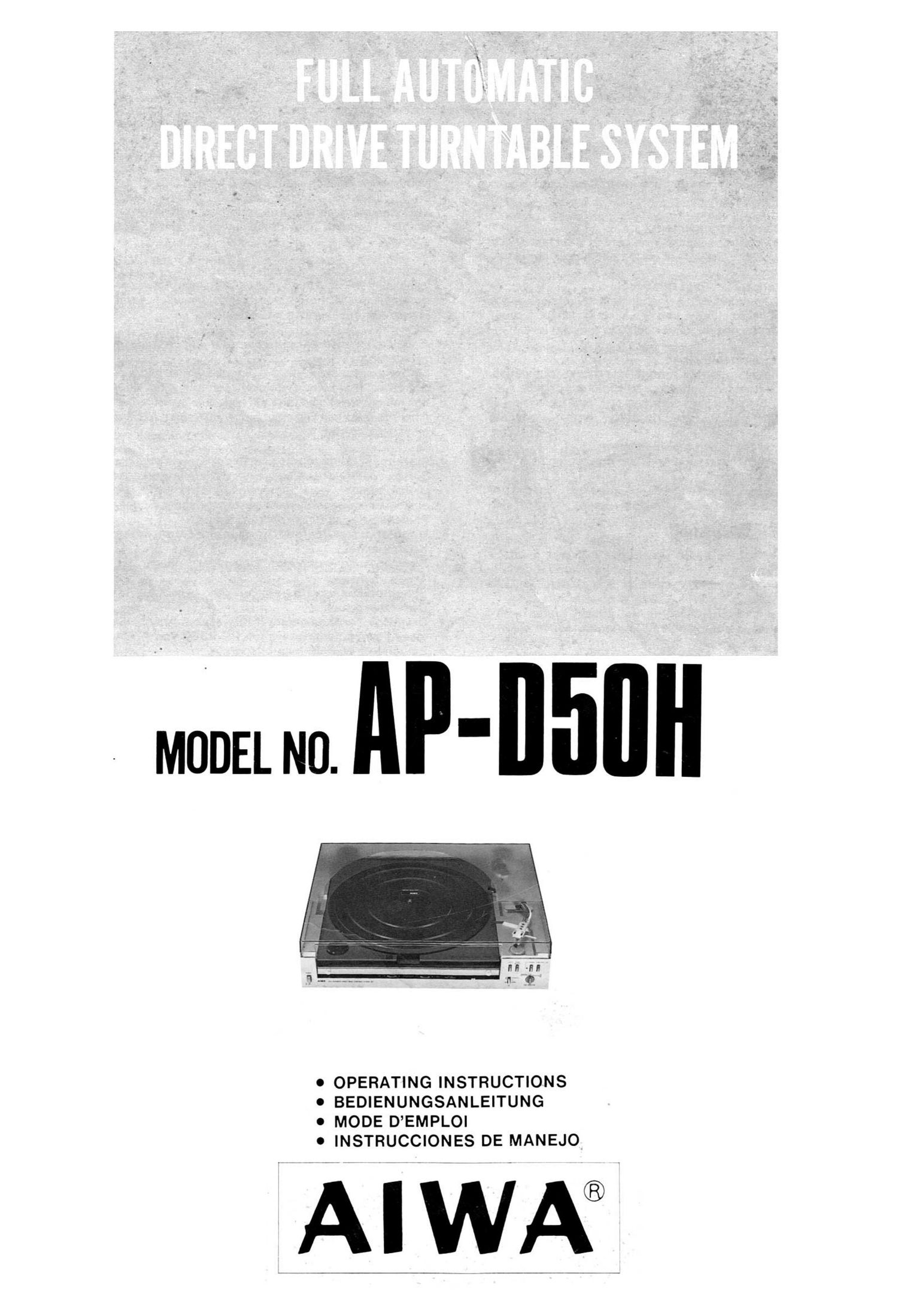

- MODEL N0. All-"50H
OPERATING INSTRUCTIONS
BEDIENUNGSANLEITUNG
MODE DEMPLOI
INSTRUCCIONES DE MANEJO
mm
MAIN FEATURE
HAUPTMERKMALE
Full auto player with unique front-loading system
Records can be inserted and removed without the need to lift
the dust cover. making it possible to position this model nearly
anywhere - even at the bottom of a component rack system.
Naturally full automatic performance keeps operations simple
and quick.
Front panel control arrangement
Record loading. on/off switching. arm cueing and manual arm
positioning can all be performed on the unit's from panel.
High-performance FG direct drive motor
A frequency-generated FG servo system maintains nearly
flawless rotational accuracy. and the slotless linear torque"
motor design holds cogging and rumble to minimal levels.
Concrete resin turntable sheet
Composed of a high-density fiberglass particle formulation.
this material features a high degree of internal loss to sup-
press undesirable resonance between disc and turntable.
High-performance MM type cartridge with removable
headshen.
Static-balanced S-shaped low-mass arm
Synchronized dubbing operation when connected to AIWA-
brand cassette decks
Wireless remote control (ON/OFF) possible when con-
nected to AIWA RC-R3OO wireless remote control sys-
tem.
Built-in stylus cleaning brush
VOLTAGE SELECTION SWITCH
0 Vollautomatischer Plattenspieler mit einzigartigem Front-
Iade-system
Schallplatten konnen eingelegt und herausgenommen
werden. ohne die Abdeckhaube hochheben zu mijssen.
wodurch es moglich wird. dieses Modell fast UberaII-selbst
an unterster Stelle eines Komponentenrack-
Systems-aufzustellen. Durch den vollautomatischen Betrieb
bleiben natiirlich die Bedienungsfunktionen einfach und
schnell.
0 Bedienungselemente auf der Frontplatte
Schallplatten-Einlegen. Ein-Aus-Schalten, Abheben und Ver-
schieben des Tonarms von Hand: das alles kann von der
Frontplatte des Gerates aus erfolgen.
o HochIeistungs-Direktantriebsmotor mit Frequenz-Referen-
zsteuerung
Ein frequenzgesteuertes FG-Servo-System halt eine nahezu
makellose Rotationsgenauigkeit aufrecht, und die Konstruk-
tion mit schlitzlosem Motor mit gleichbleibendem Drehmoment
(linear torque) halt Gleichlaufschwankungen und Rumpeln auf
minimalen Werten.
0 Plattentellerauflage aus massivem Kunstharz
Dieses Material, das aus einer Glasfaserformel von hoher
Dichte besteht. weist einen hohen Grad an Eigendampfung
auf. um unerwijnschte Resonanzen zwischen Schallplatte und
Plattenspieler zu unterdriicken.
o Hochleistungs-Magnettonabnehmer mit abnehmbarer
Kopfmuschel.
0 Statisch ausgewuchteter S-formiger Tonarm mit geringer
Tragheitsmasse. __
0 Synchronisiertes Uberspielen bei AnschluB an AIWA-
Cassettendecks.
0 Drahtlose Fernbedienung (Ein/Aus) bei Anschlufi an draht-
loses Fernbedienungssystem RC-R300 von AIWA.
0 Eingebaute Nadelreinigungsbijrste.
NETZSPANN UNGS-WAHL-SCHALTER
This set has been pre-set for AC 220 V. To employ this set with
AC 120 V or 240V power, use a pin or slotted screwdriver to
change the bottom panel voltage selector switch setting to the AC
120 V or 240 V position.
Dieser wahler wurde auf 220 V voreingestellt. Um dieses Gerat
iiber 120 V oder 240 V Wechselstrom zu betreiben, stellen Sie
den Netzspannungswahler auf der Gerateriickseite mit Hilfe
eines Stiftes oder Schlitzschraubenziehers auf die Stellung fijr
120 V oder 240 V Wechselstrom ein.
